Individual Supplemental Light LED Bar
Producing a PPF of 295 µmol/s achieving a very high efficacy of 2.9 µmol/J.
EFFICACY & PPF

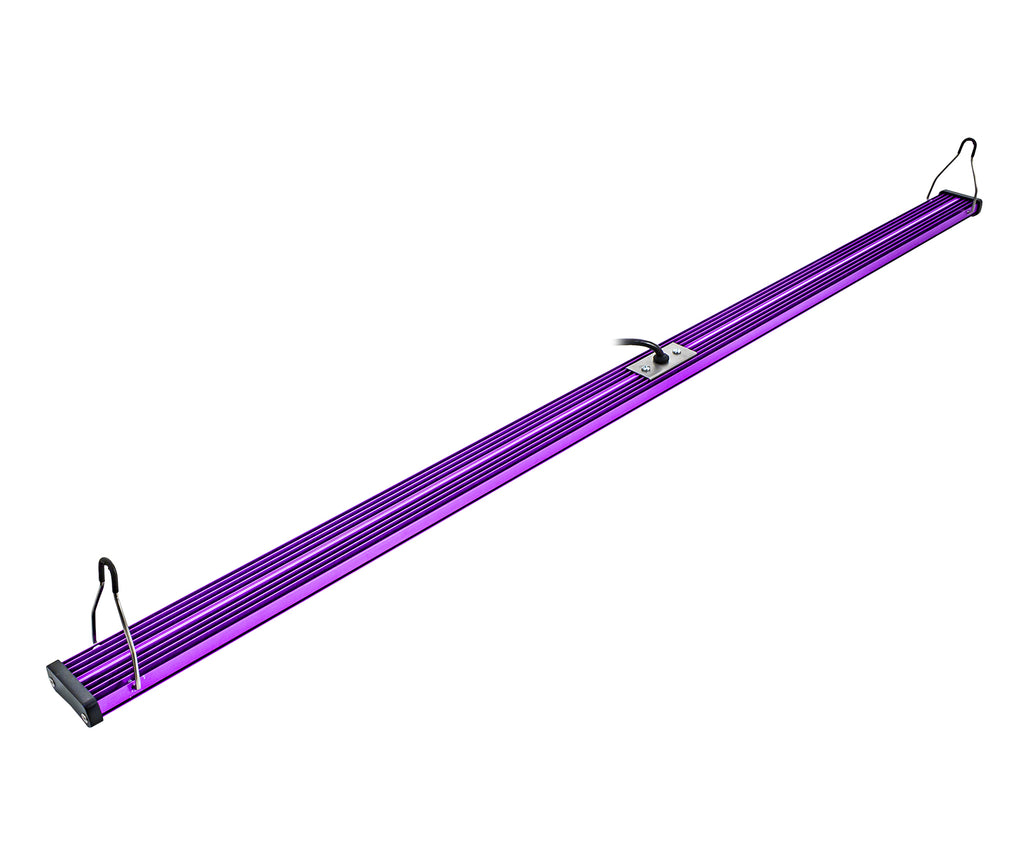

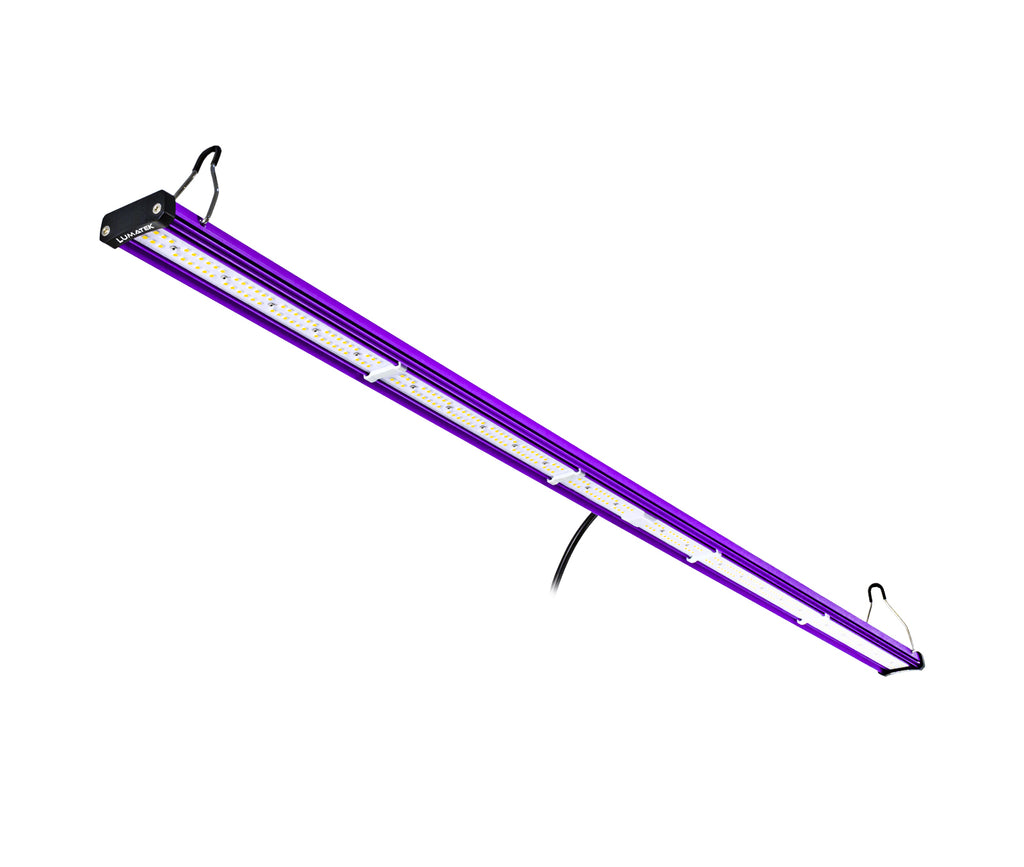

The Lumatek 100W Full-Spectrum Individual Supplemental Light LED Bar with a 100W remote driver is a flexible and dynamic LED solution to improve your grow results, producing a PPF of 295 µmol/s and a very high efficacy of up to 2.9 µmol/J
You can either use it as an add-on for your grow space that lacks light intensity, placing it at the top, side or bottom; or just use it as propagator for your cuttings and seedlings.
DIODE TECHNOLOGY
Optimize your indoor plant growth with this versatile LED light and its wide variety of applications. It produces the exact same light quantity and light spectral quality as each LED bar from our latest Zeus Pro 2.9 range, but with the difference of being a totally independent fixture with its own 100W high efficiency driver.
With the advances in technology and fixture performance, high quality LED horticultural lighting is now a credible option offering significant return on investment to cultivators. Lumatek full spectrum horticultural LED solutions balance light quality (spectra) with light quantity (intensity and duration) ensuring an even light distribution and uniform spread.
PRODUCT CONFIGURATION
The new Lumatek LED line is built using high quality Lumatek drivers and latest generation top bin LEDs from Lumileds and Osram, generating a full-spectrum light source ideal for veg and flowering cycles. Another new feature of this line is the Clear Glue protection cover technology on the LED bars, resulting in higher light transmittance of 99% without light loss, extended lifetime of diodes, extra corrosion resistance and high waterproof of IP65. For basic maintenance, simply clean the bars with wet cotton.
For different cultivars, propagation and vegetative growth periods this LED bar may be dimmed without losing efficiency. This high efficiency and low powered configuration with its outstanding passive cooling thermal management reduces the temperature of the LEDs increasing the output and improving light maintenance.
KEY SPECIFICATIONS
PRODUCT CODE: LUMLED012
EFFICACY: 2.9 μmol/J
PPF: 295 μmol/s
INPUT VOLTAGE: 220-240V, 50-60Hz
INPUT POWER (100%): 102W (±2%) @ 230 V AC
FOOTPRINT: 1.2 x 0.25 m
WATERPROOF: IP65
L90: 90% output at 60,000 h
LIGHT DISTRIBUTION: 120°
RED DIODES: Osram 4.3 µmol/J
WHITE DIODES: Lumileds 2.5 µmol/J
THERMAL MANAGEMENT: Passive Cooling
DIMMABLE: OFF-25%-50%-75%-100% with 0-10V Light Dimmer (Included)
EXTERNAL CONTROL: With Lumatek Controller or Universal Controller 0-10V, 1% steps
WEIGHT: 1.1 Kg
DIMENSIONS: 1148 x 20 x 53 mm
SPECTRUM: Full Spectrum F
WARRANTY: 5 Years
CERTIFICATIONS: CE, EMC, LVD, TISI, RCM, L90
BTU (with Driver Included): 358 BTUs/h
BTU (with Driver Not included): 333 BTUs/h
KEY FEATURES
- L90: 90% output at 60,000 h
- PPF output of 295 µmol/s
- High efficacy of 2.9 µmol/J
- High quality LUMATEK driver
- Top bin LEDs
- Balanced full spectrum
- Clear Glue protection cover technology on LED bars
- Featuring the latest Samsung and Osram diodes
- External control with Lumatek Controllers or Universal Controllers 0-10V
- Fully Dimmable
- User friendly Plug & Play Assembling
- Detachable driver for remote use
- 5 Year Warranty
- Industry Leading €/ µmol ratio
ITEMS INCLUDED:
- 1 x Lumatek 100W Full-Spectrum Individual Supplemental Light LED Bar

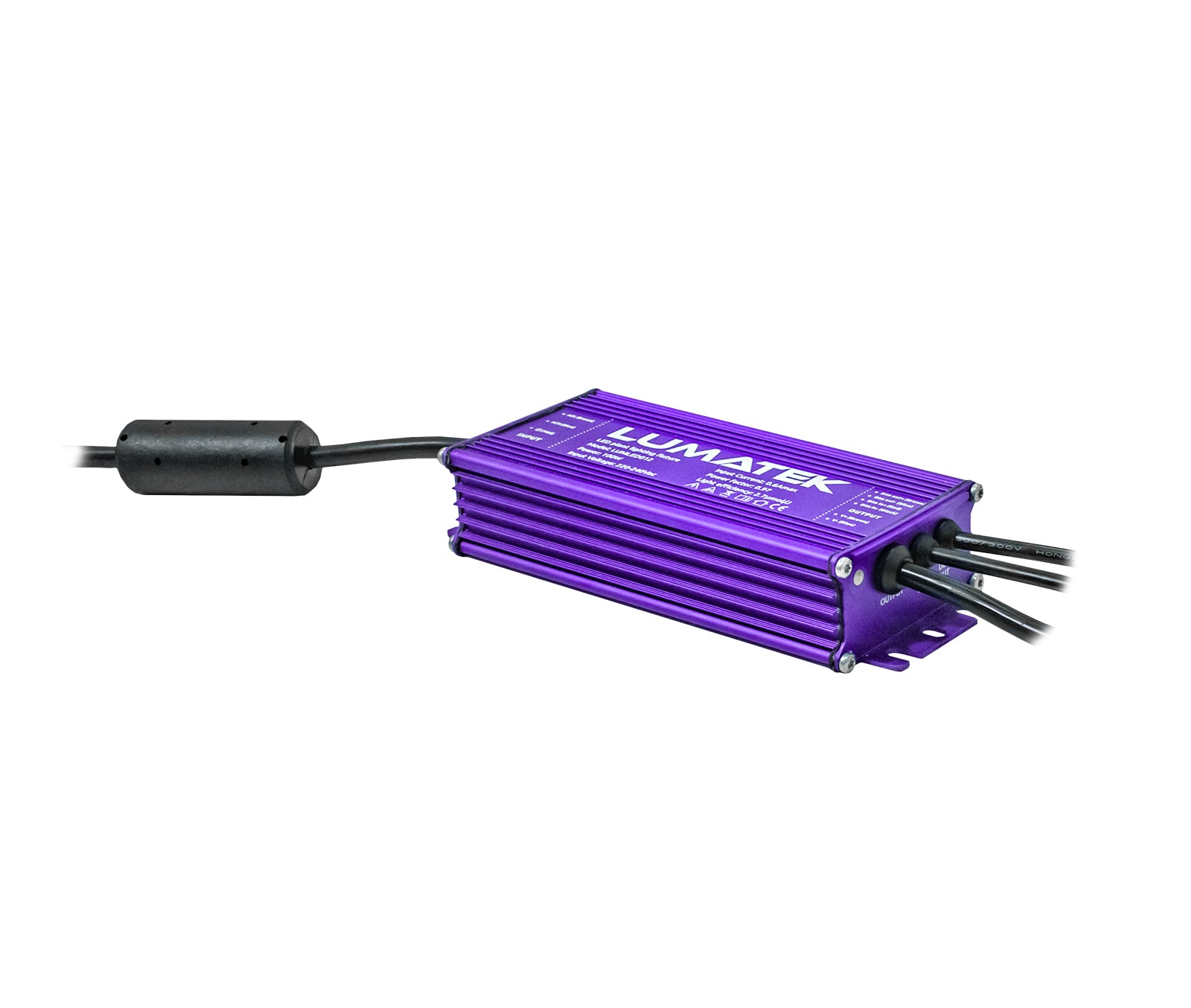

- 1 x Lumatek 100W Driver with Connecting Cables (Power and Dimming)
- 2 x Metal Hooks
- 1 x Product Manual
CONTROL SYSTEMS
This Lumatek LED fixture is fully compatible with external control systems, including the Lumatek Digital Panel Plus 2.0. Manage light timing, automated dimming in one per cent increments, temperature safety features, and dynamic Sunrise and Sunset Modes. Control up to 100 fixtures from a single controller and fine-tune your lighting environment with professional precision.
Universal Control Systems Compatibility
Whether you´re using Lumatek´s controller or another system with a 0-10V output signal, you´re covered. Even if your setup includes a controller with an RJ port interface, our LED fixtures remain compatible by using a signal converter that adapts the RJ port to 0-10V control. That means flexibility across platforms without needing to overhaul your existing gear. Designed for scalability and ease of integration, Lumatek empowers growers to take full command of their lighting setups, from tents to large-scale operations.
