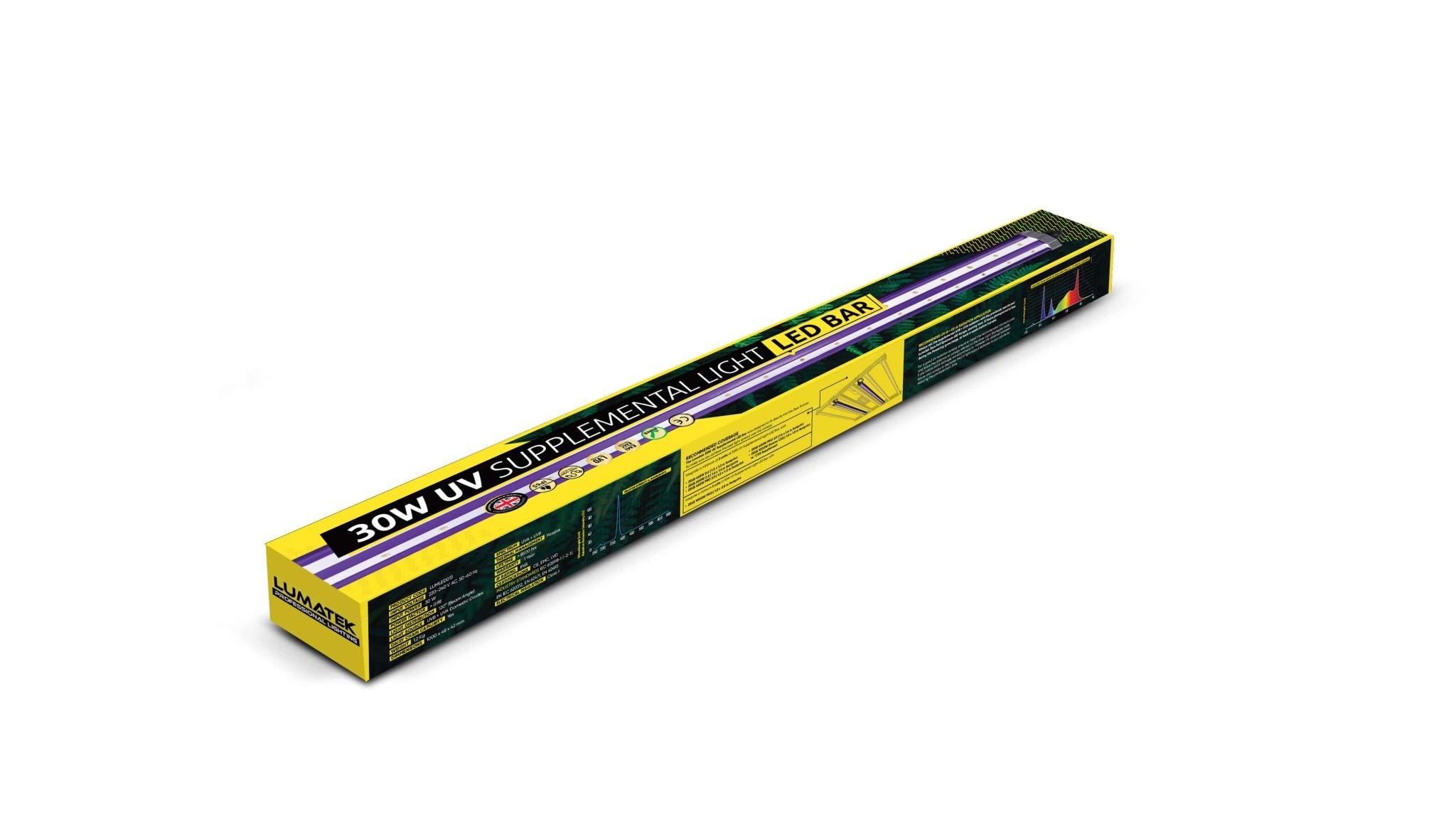

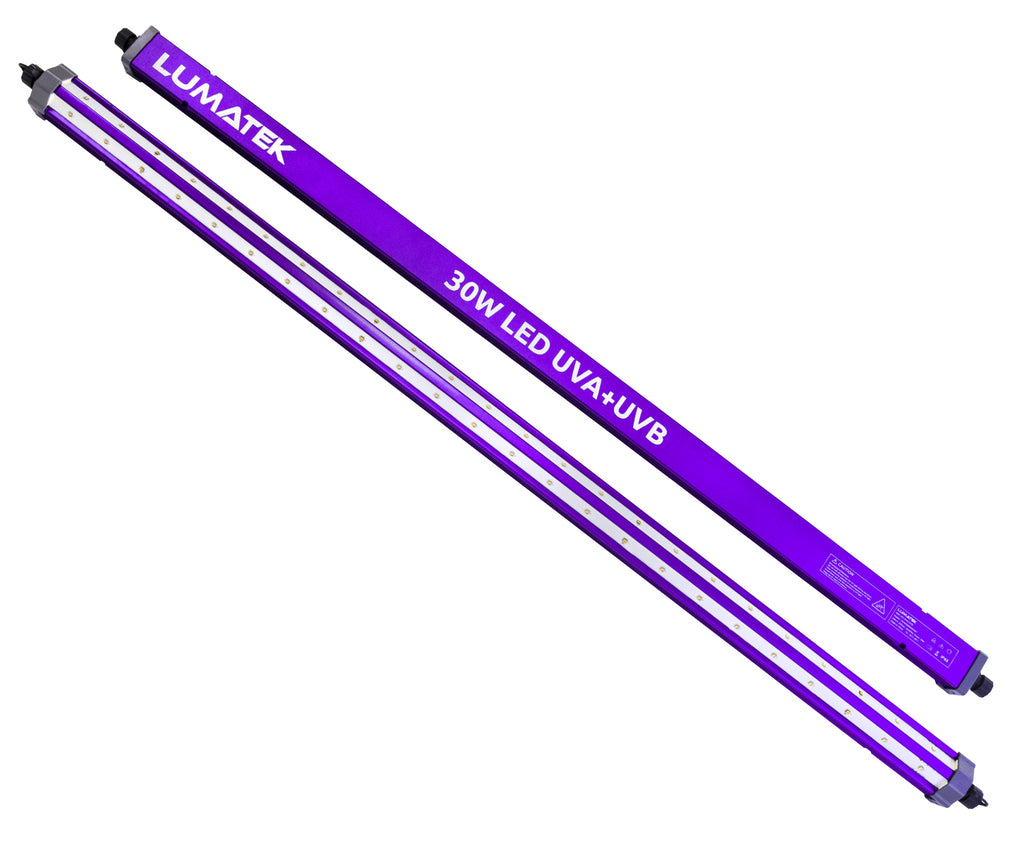

LUMATEK 30W UVA+UVB Supplemental Light LED Bar

Fixture output of 100 mW of UV-B and 12000 mW UVA.

UV Output

The Lumatek 30W UV Supplemental Light LED Bar offers a Light Spectrum addition for growers who are looking to improve their crop’s quality through UV output inclusion during the Flowering grow stage. Designed to fit directly on the popular Lumatek Zeus LED fixtures, this unit has an integrated power unit and can also be daisy chainable.

Create a complete premium fruit or flower by using ultraviolet signaling on your grow. This technology is a powerful tool for growers that are interested in creating a unique final crop, affecting its flavour, smell and increasing by up to 30% the main substance to be extracted. It will also help to control mold formation with gentle UV-B doses and reducing the need for chemical interventions by the effect of UV-A.

DIODE TECHNOLOGY

This unique fixture was specially designed to provide the ideal UV-B [280-315 nm] and UV-A [315-400 nm] radiation doses to your plants based on scientific support. A single fixture can provide 2.2 kJ/day (12 hours) of UV-B energy and 518 kJ/day (12 hours) of UV-A output. This translates to a fixture output of 100 mW of UV-B and 12000 mW UVA. Lumatek ensures that this fixture does not produce UV-C radiation. Integrate this technology together with the Lumatek Zeus LED Range frames and follow the directives on our Grow Light Strategies.

PRODUCT CONFIGURATION

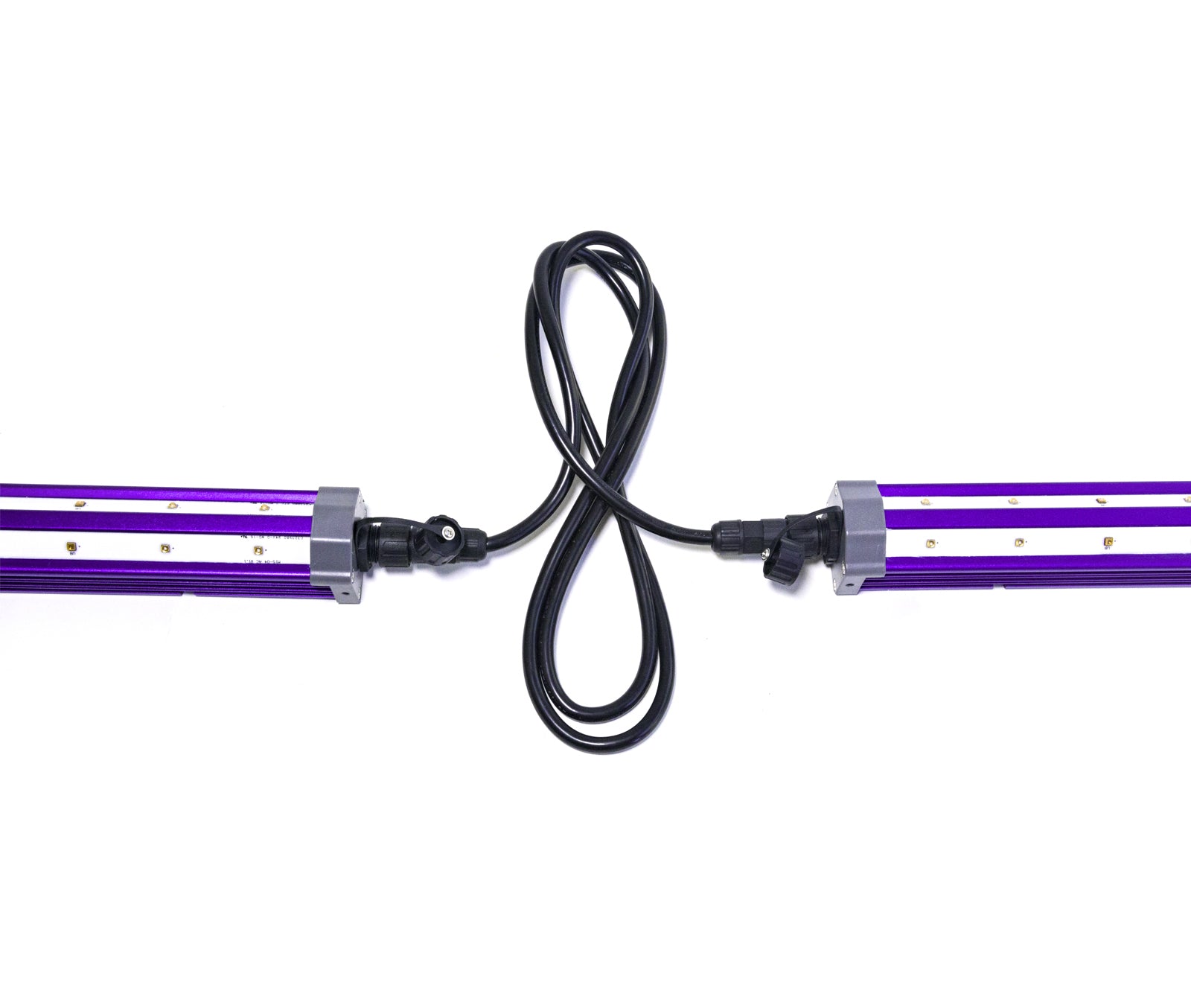

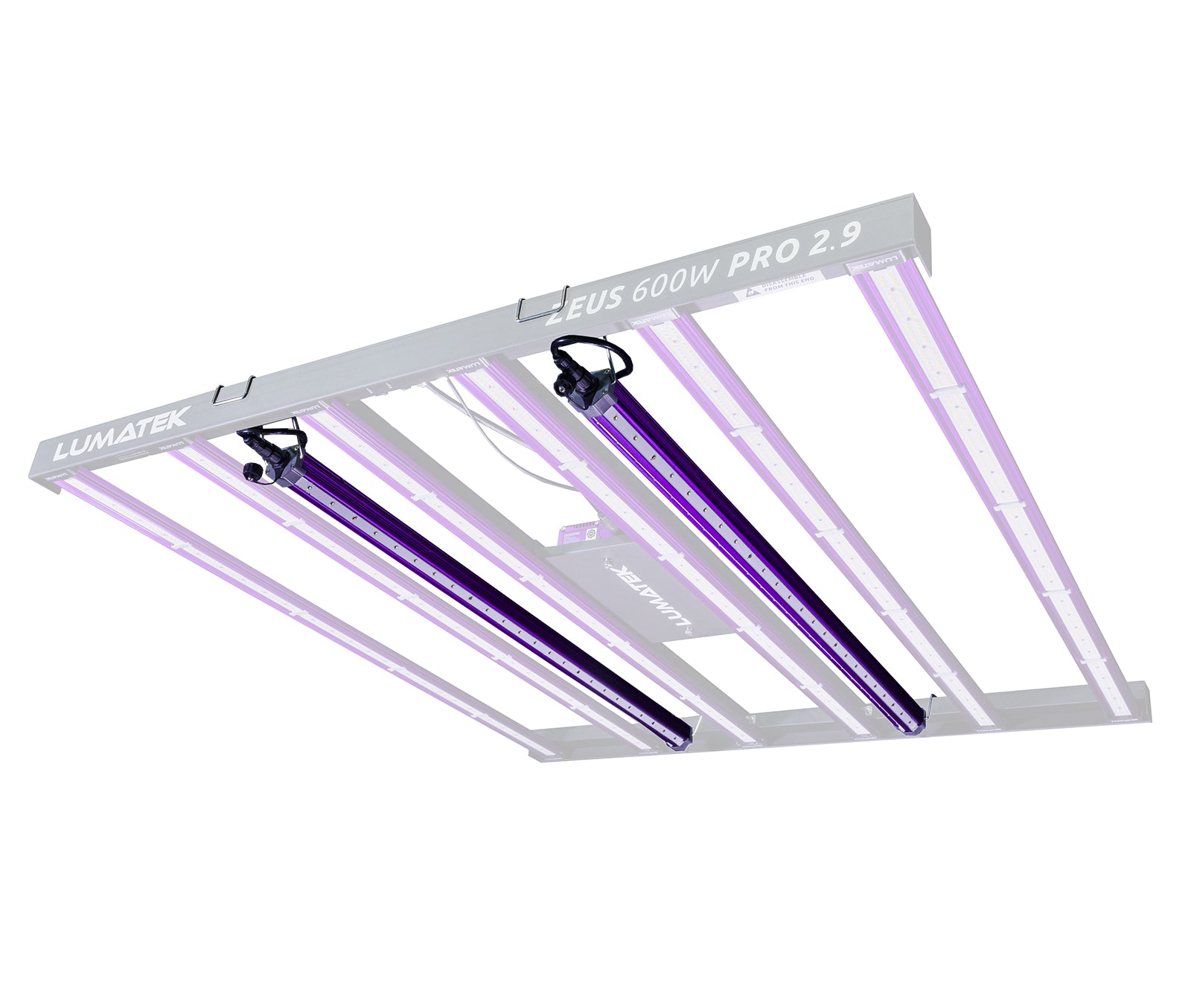

The Lumatek 30W UV Supplemental LED Bar was designed to fit directly into the Zeus fixtures. Daisy chain cable will allow you to easily connect several fixtures. To ensure unit performance, this LED bar has a single input and output socket for the Power Cable or Daisy Chain Cable depending on the use of that bar. For this reason, the Power (4m) and Daisy Chain (1.5m) cables are sold separately.

Integrate a minimum of 1 unit of 30W UV Supplemental Light LED Bar, with:
- ZEUS 300W PRO 3.1 | 1.2 x 0.6 m footprint

Integrate a minimum of 2 units of 30W UV Supplemental Light LED Bar, with:
- ZEUS 465W PRO 3.1 | 1.2 x 1.2 m footprint
- ZEUS 465W PRO 2.9 | 1.2 x 1.2 m footprint
- ZEUS 600W PRO 3.1 | 1.5 x 1.5 m footprint
- ZEUS 1000W XTREME 3.1 | 1.5 x 1.5 m footprint w/ CO2 Supplement
- ZEUS 1000W XTREME CO2 | 1.5 x 1.5 m footprint w/ CO2 Supplement

Integrate a minimum of 3 units of 30W UV Supplemental Light LED Bar, with:
- ZEUS 1000W PRO EVO 3.1 | 1.5 x 2.0 m footprint

KEY SPECIFICATIONS

PRODUCT CODE: LUMLED013
UV-A (315-400 nm): 1200 mW
UV-B (280-315 nm): 100 mW
INPUT VOLTAGE: 20-240 V AC, 50-60 HZ
INPUT POWER(100%): 30 W (±5%) @230 V AC
WATERPROOF: IP65
L90: 90% output at 8,500 h
LIGHT DISTRIBUTION: 140°
LIGHT SOURCE(UV-A): LEDESTAR UVA 0.33 µmol/J
LIGHT SOURCE(UV-B): LEDESTAR UVB 0.01 µmol/J
THERMAL MANAGEMENT: Passive Cooling
DIMENSIONS: 1000 x 48 x 42 mm
WEIGHT: 1.2 Kg
THERMAL MANAGEMENT: PASSIVE
DIMMABLE: No
EXTERNAL CONTROL: No
DAISY CHAIN CAPABILITY: Yes
SPECTRUM UV-B + UV-A
WARRANTY: 1 YEAR
CERTIFICATIONS: CE, EMC, LVD, TISI, RCM, L90
BTU: 102 BTUs/h (Max)

KEY FEATURES

- Increase raw substance levels by 30%
- Control mold formation
- Reduce the need for chemical interventions
- Flavour & Taste direct impact
- Extends plants shelf life
- Top Bin LED UV Chips
- Attachable to all Lumatek Zeus Full-Spectrum LED Range

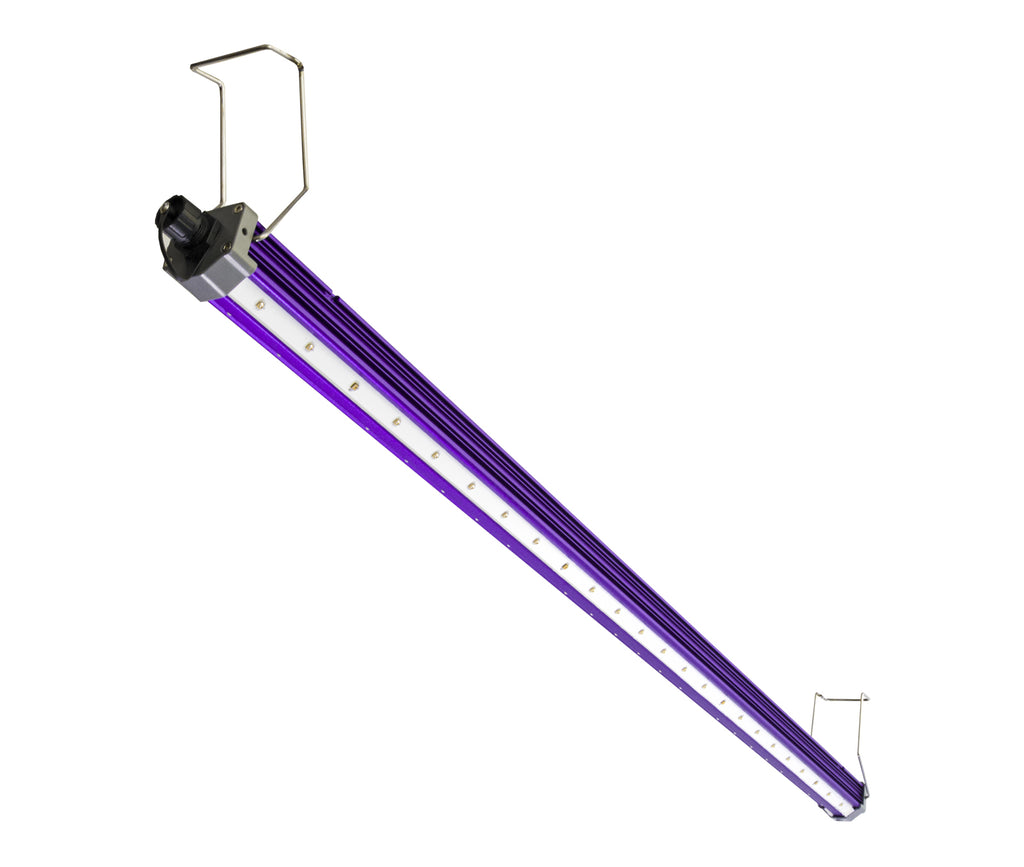

- Flexible hanging brackets
- Plug and Play: internal LED Driver
- Daisy chain connectivity
- Passive Cooling
- IP65

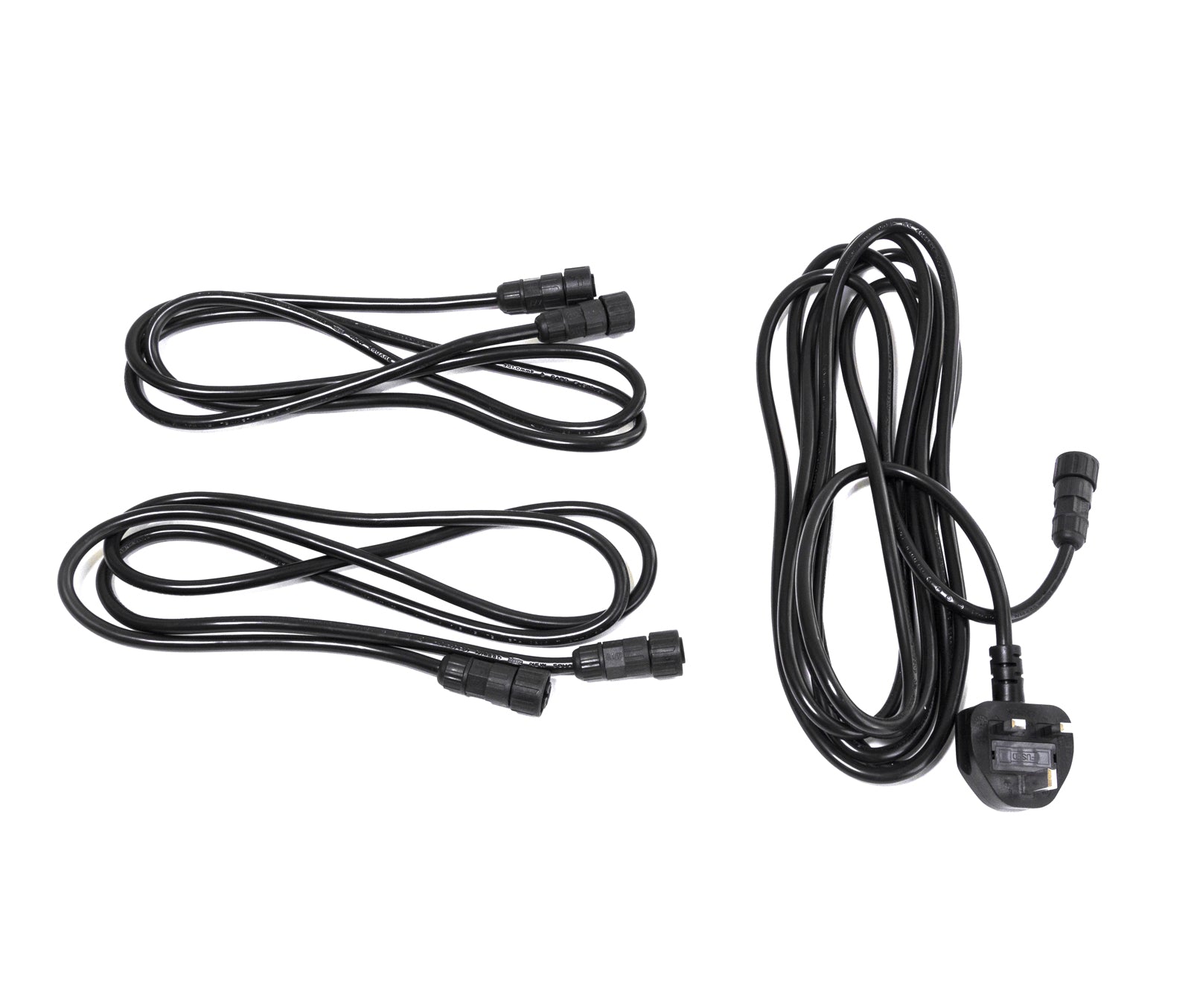

- Power Cable (4m) & Daisy Chain Cables (1.5m) sold separetely

ITEMS INCLUDED:
1 x 30 W UV Supplemental Light LED Bar
2 x Stainless Stell Hook

ITEMS SOLD SEPERATELY:
Power Cable (LUMM0032)
UV Bar Daisy Chain Cable (LUMM0033)

CONTROL SYSTEMS

This Lumatek LED fixture is fully compatible with external control systems, including the Lumatek Digital Panel Plus 2.0. Manage light timing, automated dimming in one per cent increments, temperature safety features, and dynamic Sunrise and Sunset Modes. Control up to 100 fixtures from a single controller and fine-tune your lighting environment with professional precision.

Universal Control Systems Compatibility

Whether you´re using Lumatek´s controller or another system with a 0-10V output signal, you´re covered. Even if your setup includes a controller with an RJ port interface, our LED fixtures remain compatible by using a signal converter that adapts the RJ port to 0-10V control. That means flexibility across platforms without needing to overhaul your existing gear. Designed for scalability and ease of integration, Lumatek empowers growers to take full command of their lighting setups, from tents to large-scale operations.
