BALLAST USAGE

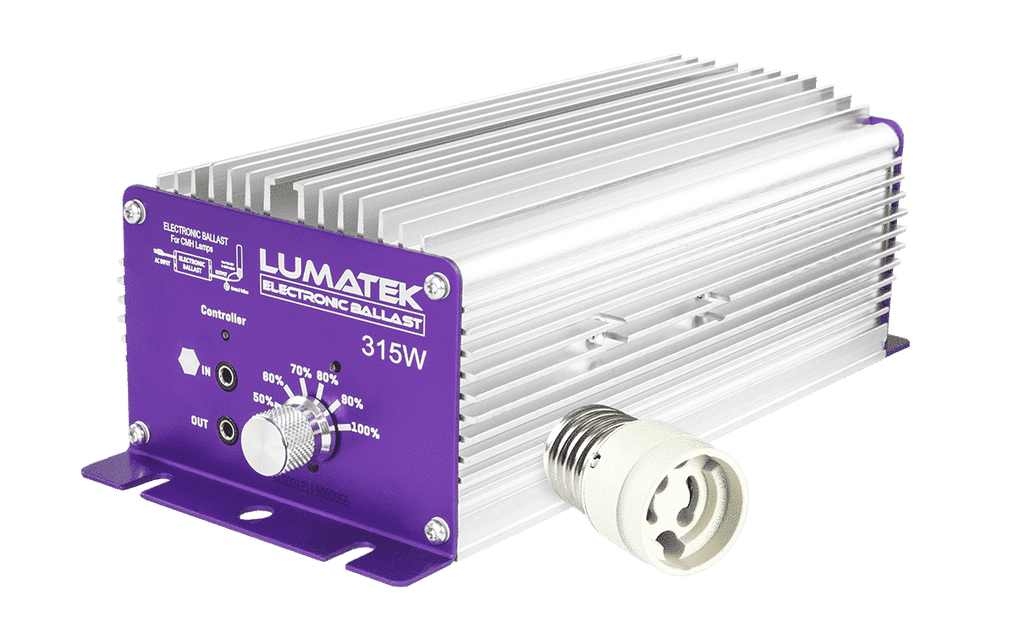

Lumatek developed this reliable intelligent digital ballast that has been successfully used in cultivation facilities around the world.
BALLAST TECHNOLOGY
Using square wave technology to efficiently fire and operate 315W Ceramic Metal Halide (also known as CMH/CDM/LEC) lamps this ballast offers a full-spectrum output with less power consumed, lower light temperature production, more umol (PAR) light and more UV-A & UV-B than traditional HID/HPS/MH fixtures.
CMH technology creates high energy PAR/PPF levels with low heat and full spectrum light which is closer to sunlight and produces healthier plant growth and larger yield. With a CRI (Colour Rendering Index) of >90%, CMH is perfect for growing high quality produce and essential oil extraction.
KEY SPECIFICATIONS
Product Code: LUMBC001
Output power: 315W
Input Voltage: 220-240V 50/60Hz
Input Current (Max): 1.40A
Input Power: 334W
Power factor: 0.98
Efficiency: 95%
Voltage range: 185 to 275V
THD: <10%
Dimming: 50%-60%-70%-80%-90%-100%
Lamp CCF: <1.6
Operating frequency: low frequency
Environment temperature for full load operation: 40℃
Enclosure temperature rise (Δt) ): 30℃
Ballast IP rated: IP20
Humidity: 90%
Dimensions: 245 x 114 x 81mm
Weight: 2.5Kg
KEY FEATURES
EMI suppression certified
Full circuit protection; open/short, over temperature, over/low voltage, end of lamp life/rectification
No audible noise, no flicker
CONTROL SYSTEMS
This Lumatek LED fixture is fully compatible with external control systems, including the Lumatek Digital Panel Plus 2.0. Manage light timing, automated dimming in one per cent increments, temperature safety features, and dynamic Sunrise and Sunset Modes. Control up to 100 fixtures from a single controller and fine-tune your lighting environment with professional precision.
Universal Control Systems Compatibility
Whether you´re using Lumatek´s controller or another system with a 0-10V output signal, you´re covered. Even if your setup includes a controller with an RJ port interface, our LED fixtures remain compatible by using a signal converter that adapts the RJ port to 0-10V control. That means flexibility across platforms without needing to overhaul your existing gear. Designed for scalability and ease of integration, Lumatek empowers growers to take full command of their lighting setups, from tents to large-scale operations.
