BALLAST USAGE

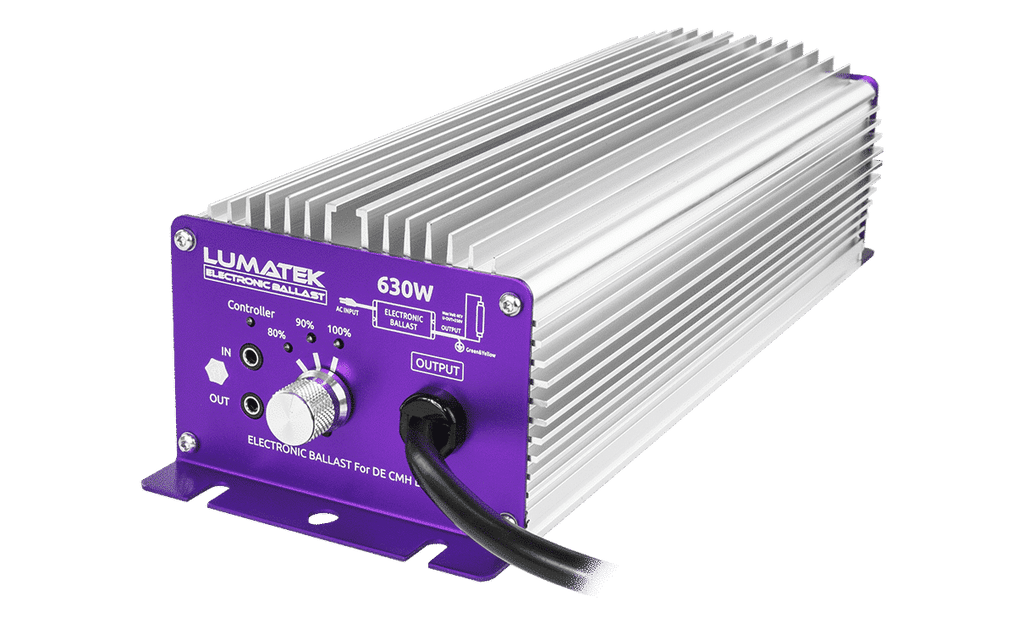

This reliable digital ballast has been successfully used in cultivation facilities around the world and uses high frequency technology to efficiently fire and operate 630W Double-Ended (DE) Ceramic Metal Halide (also known as CMH/CDM/LEC) lamps.
BALLAST TECHNOLOGY
CMH technology creates high energy PAR/PPF levels with low heat and full spectrum light which is closer to sunlight and produces healthier plant growth and larger yield. With a CRI (Colour Rendering Index) of >90%, CMH is perfect for growing high quality produce and essential oil extraction.
This ballast is for use with Lumatek 630W DE CMH lamp (4200K Daylight and 3100K Agro available).
For safety this ballast uses full circuit protection including open/short circuit, over temperature, over/low voltage, end of lamp life/rectification and EMI suppression.
KEY SPECIFICATIONS
Product Code: LUMBC004
Voltage 240V 50/60Hz
Input Current Max (A) 3.2A
Input power 668W
Output power 630W
Power factor >0.97
Efficiency 95%
Voltage range 185 to 275V
THD <10%

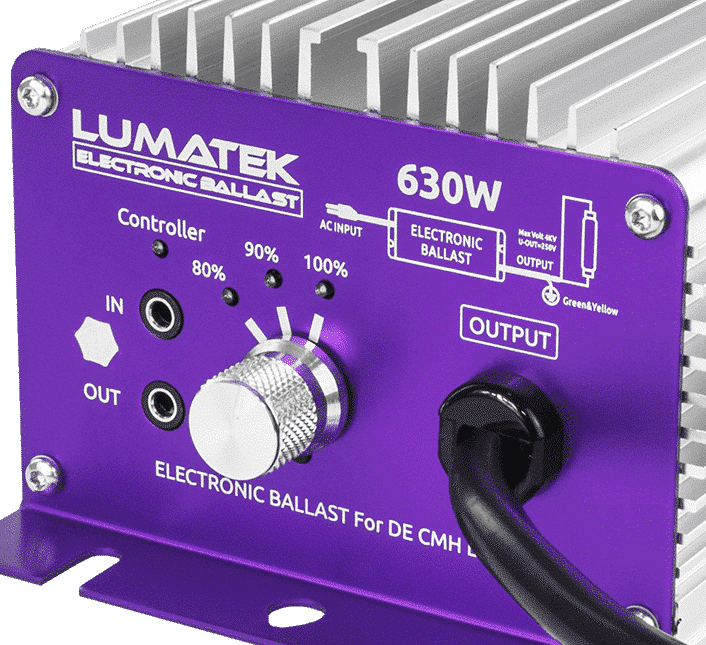

Dimming 80% - 90% - 100%
CF <1.7
Operating frequency high frequency
Environment temperature for full load operation 40℃
Enclosure temperature rise (Δt) ) 30℃
Ballast IP rated IP20
Humidity 90%
Dimensions 320 x 114 x 81mm
Weight 3.8 Kg
KEY FEATURES
Electronic ballast for 630W DE CMH lamps
No audible noise, no flicker
Full circuit protection; open/short, over temperature, over/low voltage, end of lamp life/rectification
EMI suppression certified
CONTROL SYSTEMS
This Lumatek LED fixture is fully compatible with external control systems, including the Lumatek Digital Panel Plus 2.0. Manage light timing, automated dimming in one per cent increments, temperature safety features, and dynamic Sunrise and Sunset Modes. Control up to 100 fixtures from a single controller and fine-tune your lighting environment with professional precision.
Universal Control Systems Compatibility
Whether you´re using Lumatek´s controller or another system with a 0-10V output signal, you´re covered. Even if your setup includes a controller with an RJ port interface, our LED fixtures remain compatible by using a signal converter that adapts the RJ port to 0-10V control. That means flexibility across platforms without needing to overhaul your existing gear. Designed for scalability and ease of integration, Lumatek empowers growers to take full command of their lighting setups, from tents to large-scale operations.
