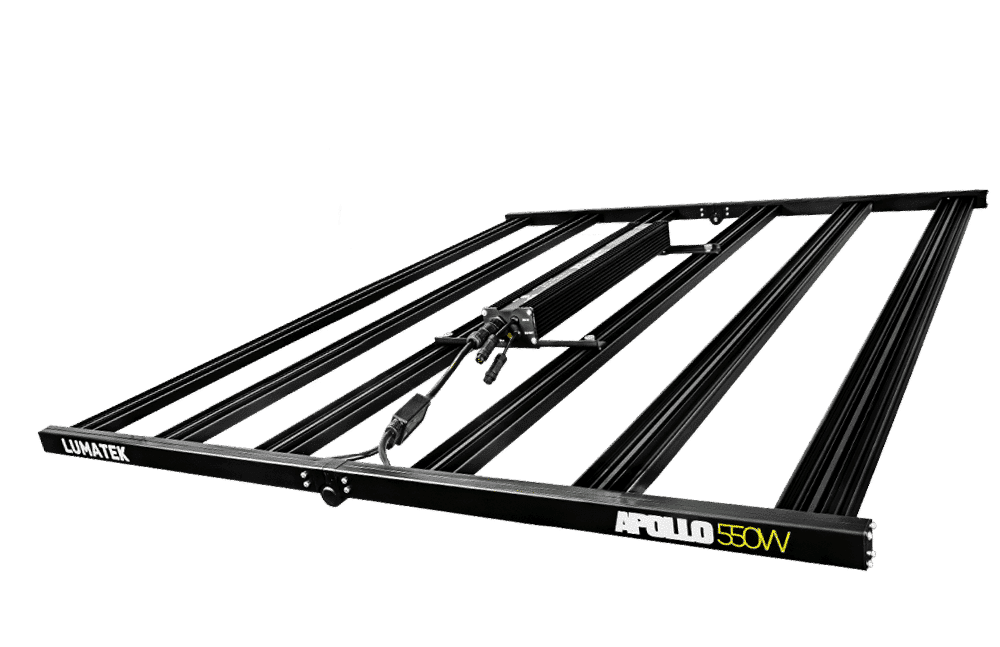

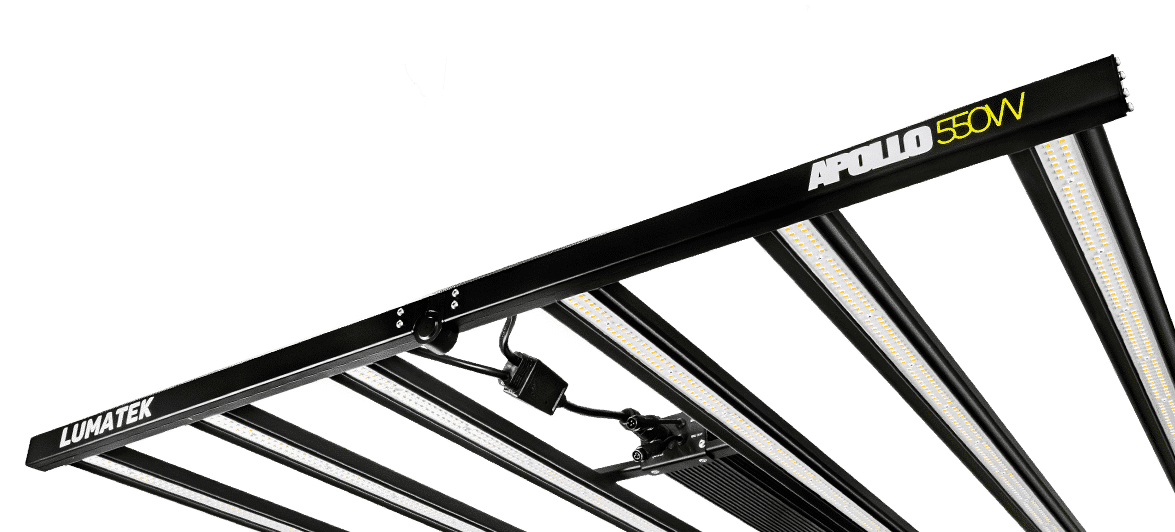

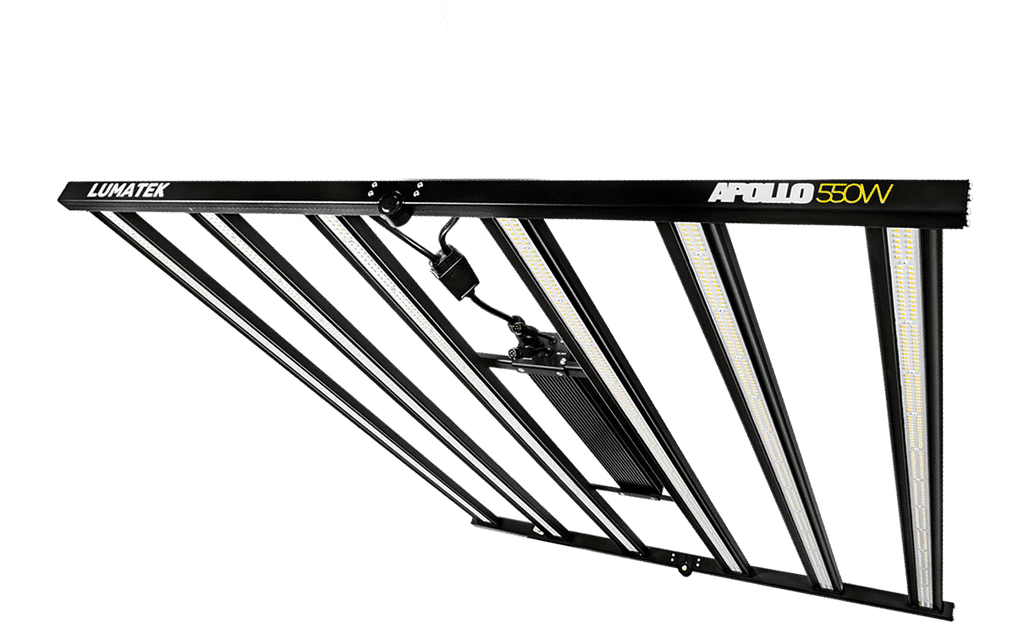

LUMATEK APOLLO 550W LED

LUMATEK APOLLO 550W LED delivers 1540 μmol/s with an efficacy of 2.8 μmol/J, using high-quality 4.4 μmol/J diodes. It covers up to 1.2 × 1.2 m grow areas and 90% output even after 50,000 hours, proven and reliable.

EFFICACY & PPF

The LUMATEK APOLLO 550W LED fixture is designed for entry-level growers seeking consistent performance and optimized yields. It delivers a photosynthetic photon flux (PPF) of 1540 μmol/s with a real efficacy of 2.8 μmol/J, covering grow areas of 1.2 x 1.2 meters for flowering crops.

DIODE TECHNOLOGY

The fixture features a balanced full-spectrum light, combining white and deep red diodes to support the complete plant growth cycle. Powered by a high-efficiency driver, it ensures stable and reliable operation, while heat is managed through a passive heat sink design for silent, long-term thermal stability.

PRODUCT CONFIGURATION

Its foldable design, lightweight construction of only 7.4 Kg, compact size, and plug-and-play installation make deployment simple and flexible.

The LUMATEK APOLLO 550W is built to last, with a lifetime exceeding 50.000 hours (L90 standard), and carries certifications including CE, RCM, LVD, RoHS, and EMI/EMC, with an IP65 rating for dust and humidity proof. It offers 0–10 V dimming, fully compatible with LUMATEK controllers, with a dimming range of 20–100% and comes with a 3-year warranty.

KEY SPECIFICATIONS

PRODUCT CODE: LUMLED036
EFFICACY: 2.8 μmol/J
PPF: 1540 μmol/s
INPUT VOLTAGE: 220-240 V AC, 50-60 Hz
INPUT POWER AT 100%: 550 W (±5%) @230 V AC
FOOTPRINT: 1.2 x 1.2 m
WATERPROOF: IP65 – resistant to dust and humidity
L90: 90% output at 50,000 h
LIGHT DISTIBUTION: 120º
DIMMABLE: 20–100%
EXTERNAL CONTROL: With Lumatek Controllers or Universal Controller 0–10 V, 1% steps
WEIGHT: 7.4 Kg
DIMENSIONS: 1143 x 936 x 85 mm
SPECTRUM: Balanced Full spectrum with white and deep red for complete growth cycle
WARRANTY: 3 years
CERTIFICATIONS: CE, LVD, RoHS, EMI/EMC
BTU (WITH DRIVER ATTACHED): 1877 BTUs/h (Max)
BTU (WITH DRIVER REMOTE): 1746 BTUs/h (Max)

KEY FEATURES

• L90: 90% output at 50,000 h
  - High PPF and efficacy: energy-efficient light output
  - High quality Lumatek LED drivers
  - Clear Glue protection cover technology on LED bars
  - Balanced Full Spectrum LEDs: supports full length growth cycle
  - Compatible with Lumatek and Universal Controllers 0-10 V
  - Fully Dimmable: precise control over light intensity
  - Plug & Play design: easy installation, lightweight and compact
  - Passive cooling: silent operation and extended fixture lifetime
  - 3 Year Warranty

  ITEMS INCLUDED
  - 1x Lumatek Apollo 550W Driver + Power cable
  - 1x Lumatek Apollo LED Frame with LED bars and connecting cables
  - 1x Light Dimmer (0-25-50-75-100%)
  - 2x Metal cable hangers
  - 1x Apollo Manual

CONTROL SYSTEMS

This Lumatek LED fixture is fully compatible with external control systems, including the Lumatek Digital Panel Plus 2.0. Manage light timing, automated dimming in one per cent increments, temperature safety features, and dynamic Sunrise and Sunset Modes. Control up to 100 fixtures from a single controller and fine-tune your lighting environment with professional precision.

Universal Control Systems Compatibility

Whether you´re using Lumatek´s controller or another system with a 0-10V output signal, you´re covered. Even if your setup includes a controller with an RJ port interface, our LED fixtures remain compatible by using a signal converter that adapts the RJ port to 0-10V control. That means flexibility across platforms without needing to overhaul your existing gear. Designed for scalability and ease of integration, Lumatek empowers growers to take full command of their lighting setups, from tents to large-scale operations.
