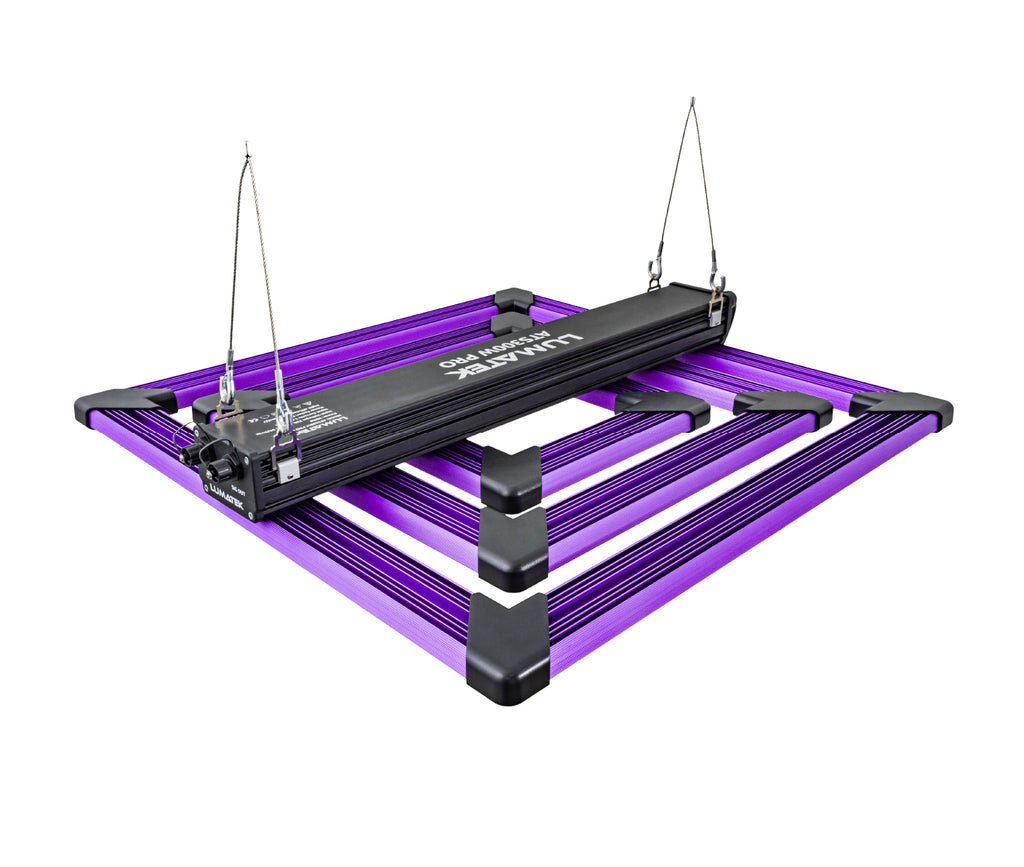

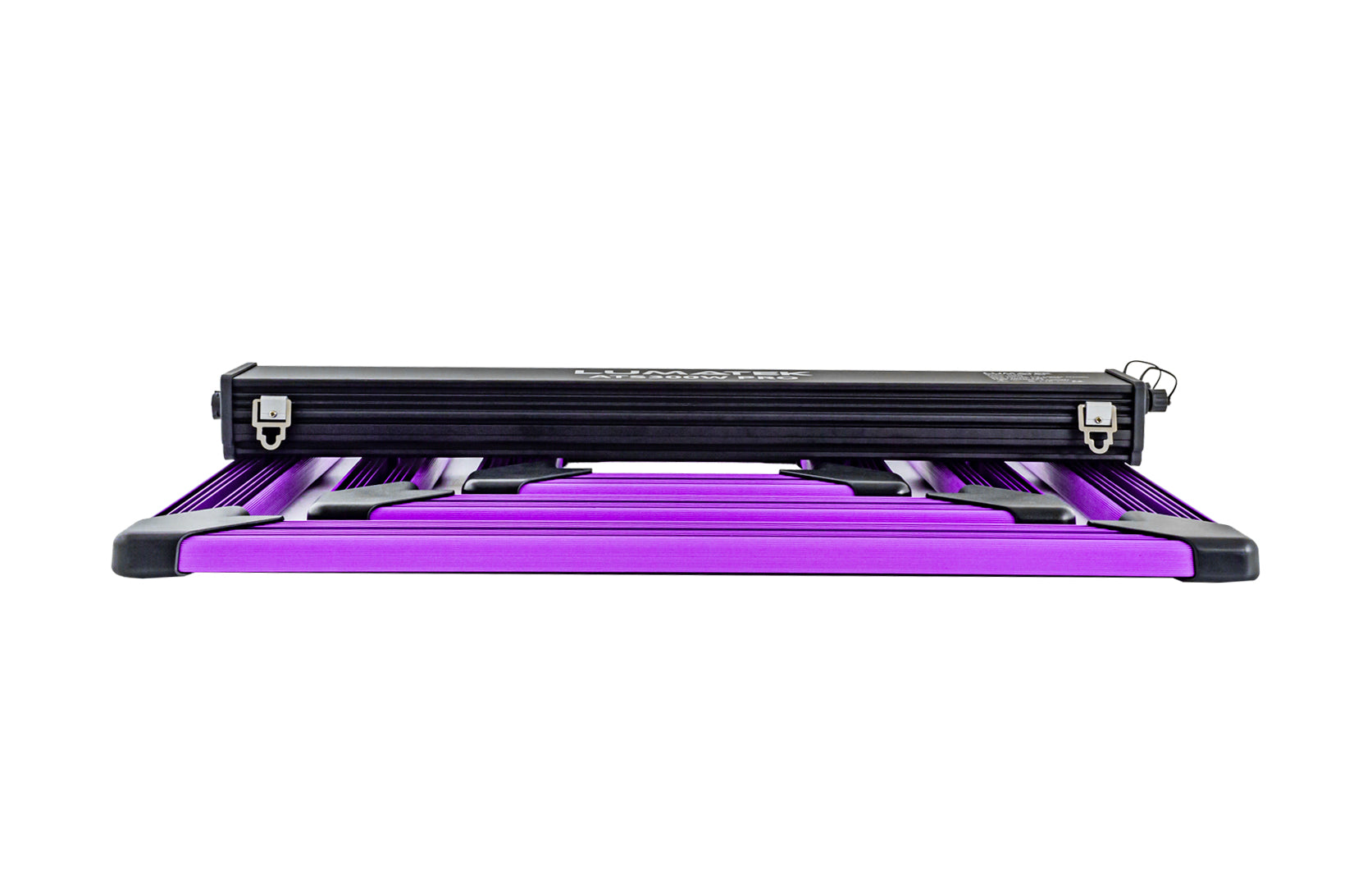

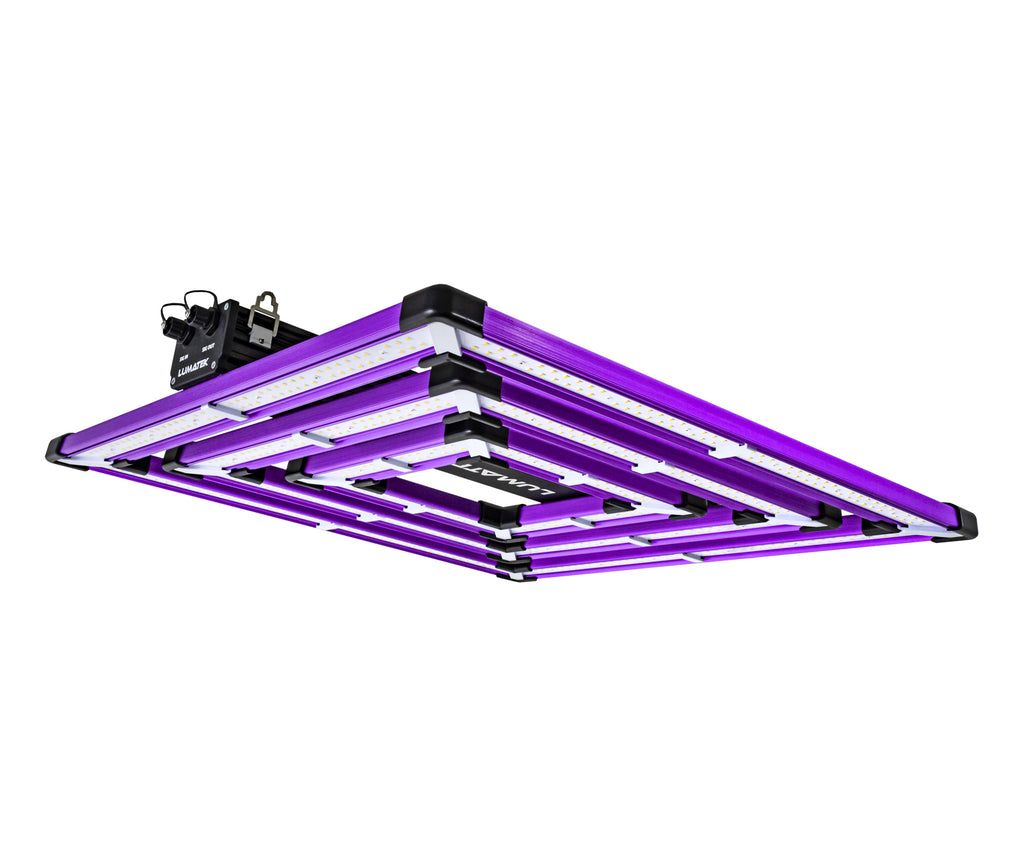

LUMATEK ATS300W PRO LED

ATS300W PRO producing a PPF of 816 µmol/s, achieving a high efficacy of 2.7 µmol/J. 90% light output at 60,000 h, verified!

EFFICACY & PPF

Lightweight, efficient, and engineered for precision, the Lumatek ATS300W PRO delivers serious performance in a compact footprint. This upgraded fixture outputs a high PPF of 816 µmol/s with a photon efficacy of 2.7 µmol/J, making it ideal for 1 by 1 meter grow spaces where intensity and uniformity matter.

The latest diode layout features improved spacing across the full length of the bars, resulting in a more even light spread and better coverage across the canopy. With no hot spots and a more balanced footprint, plants receive consistent energy from edge to edge.

Designed with passive convection cooling, the ATS 300W PRO operates silently, eliminating the need for fans or moving parts. This not only enhances long-term reliability but also keeps your grow room quieter and more efficient. Built with durability and clean performance in mind, this fixture is a dependable choice for small-scale, high-quality cultivation.

DIODE TECHNOLOGY

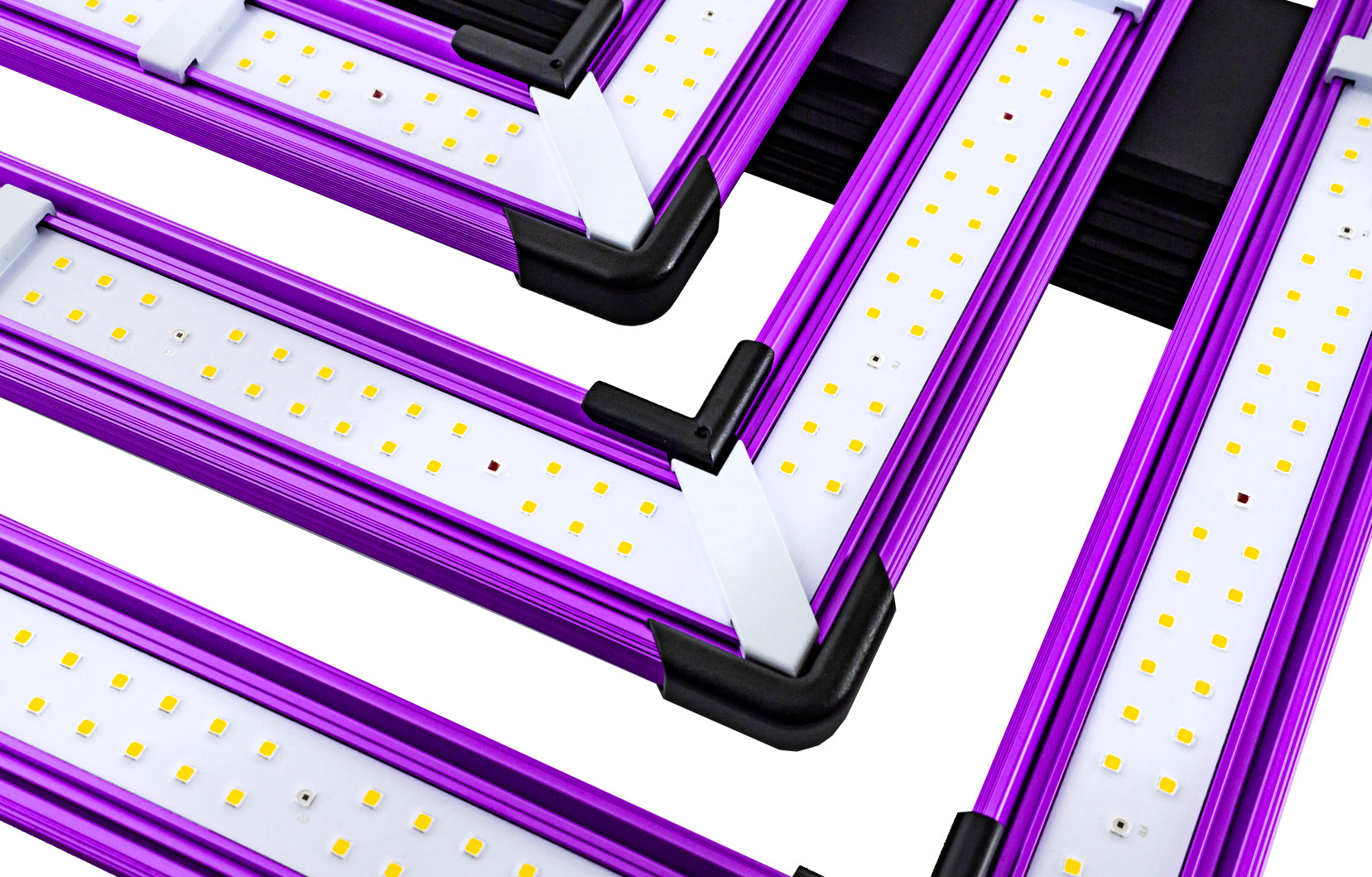

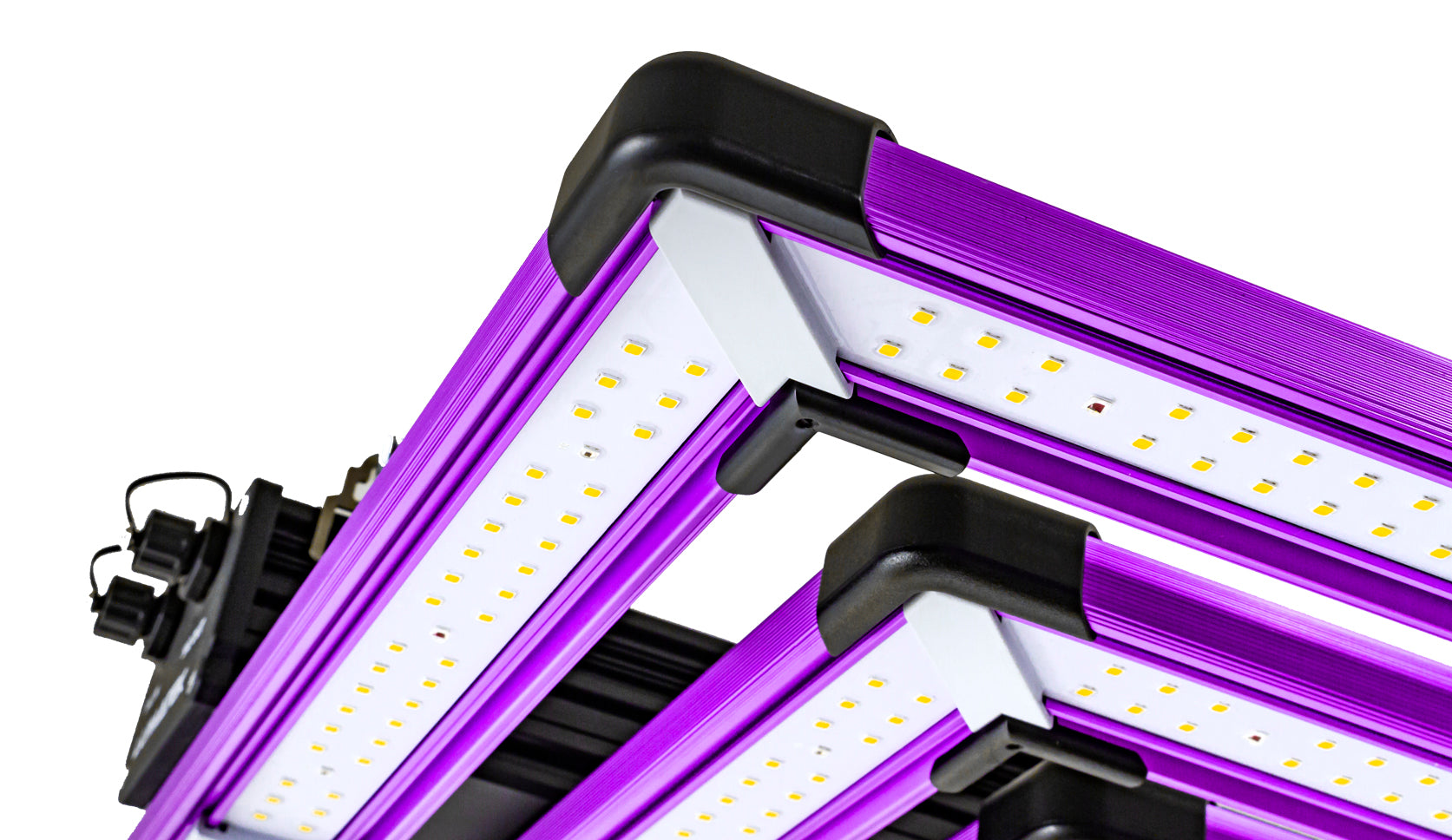

Lumatek ATS PRO lights are built around a carefully tuned blend of white, deep red, and far-red diodes, delivering a full spectrum with high intensity, consistent uniformity, and deep canopy penetration. This advanced spectrum is designed for optimal light absorption across all phases of plant development, promoting healthy growth and high-quality yields.

Earlier LED grow light designs focused heavily on royal blue and deep red wavelengths to match the absorption peaks of chlorophyll. While functional, these limited-spectrum setups lacked the broader wavelengths needed for complete plant development. They also struggled to penetrate dense canopies, making it difficult for growers to visually inspect and maintain their rooms.

Lumatek’s full-spectrum approach addresses these gaps, providing enhanced plant response, improved crop quality, and clear visibility in the grow space.

PRODUCT CONFIGURATION

The new ATS PRO range delivers uniform light distribution at close range, allowing for strong canopy penetration without creating hotspots or excess heat. This even spread ensures healthy growth across the entire footprint, especially in compact grow setups where every inch matters.

Engineered with an innovative heat sink and passive natural convection system, the fixture stays cool without the need for fans. The fanless design means zero noise and fewer points of failure, significantly extending the lifespan of the fixture and keeping your grow space quiet and efficient. For growers working with different cultivars or managing early-stage growth, the fixture is fully dimmable without sacrificing efficiency. Its low-powered, high-efficiency LED configuration keeps diode temperatures in check, which boosts long-term output and enhances overall light maintenance over time.

The ATS300W PRO is fully dimmable, allowing you to adapt light intensity to suit different cultivars and early growth stages without sacrificing efficiency. Its low-powered, high-efficiency bar design keeps diode temperatures low, enhancing light stability and output over time—ideal for growers looking to fine-tune their grow while keeping energy use in check.

KEY SPECIFICATIONS

PRODUCT CODE: LUMLED300P
EFFICACY: 2.7 µmol/J
PPF: 816 µmol/s
INPUT VOLTAGE: 220-240V, 50-60Hz
INPUT POWER at 100%: 310 W (±2%) @230 V AC
FOOTPRINT: 1 x 1 m
WATERPROOF: IP65
L90: 90% output at 60,000 hrs
LIGHT DISTRIBUTION: 120°
THERMAL MANAGEMENT: Passive Cooling
DIMMABLE: OFF-25%-50%-75%-100% with 0-10V Light Dimmer (Included)
EXTERNAL CONTROL: With Lumatek Controller or Universal Controller 0-10V, 1% steps
WEIGHT: 5.2 Kg
DIMENSIONS: 560 x 560 x 72 mm
SPECTRUM: Full Spectrum +
WARRANTY: 3 Years
CERTIFICATIONS: CE, EMC, LVD, TISI, RCM, L90
BTU: 1082 BTUs/h (Max)

KEY FEATURES

- L90: 90% output at 60,000 h
- Efficacy 2.7 µmol/J
- PPF output of 816 µmol/s

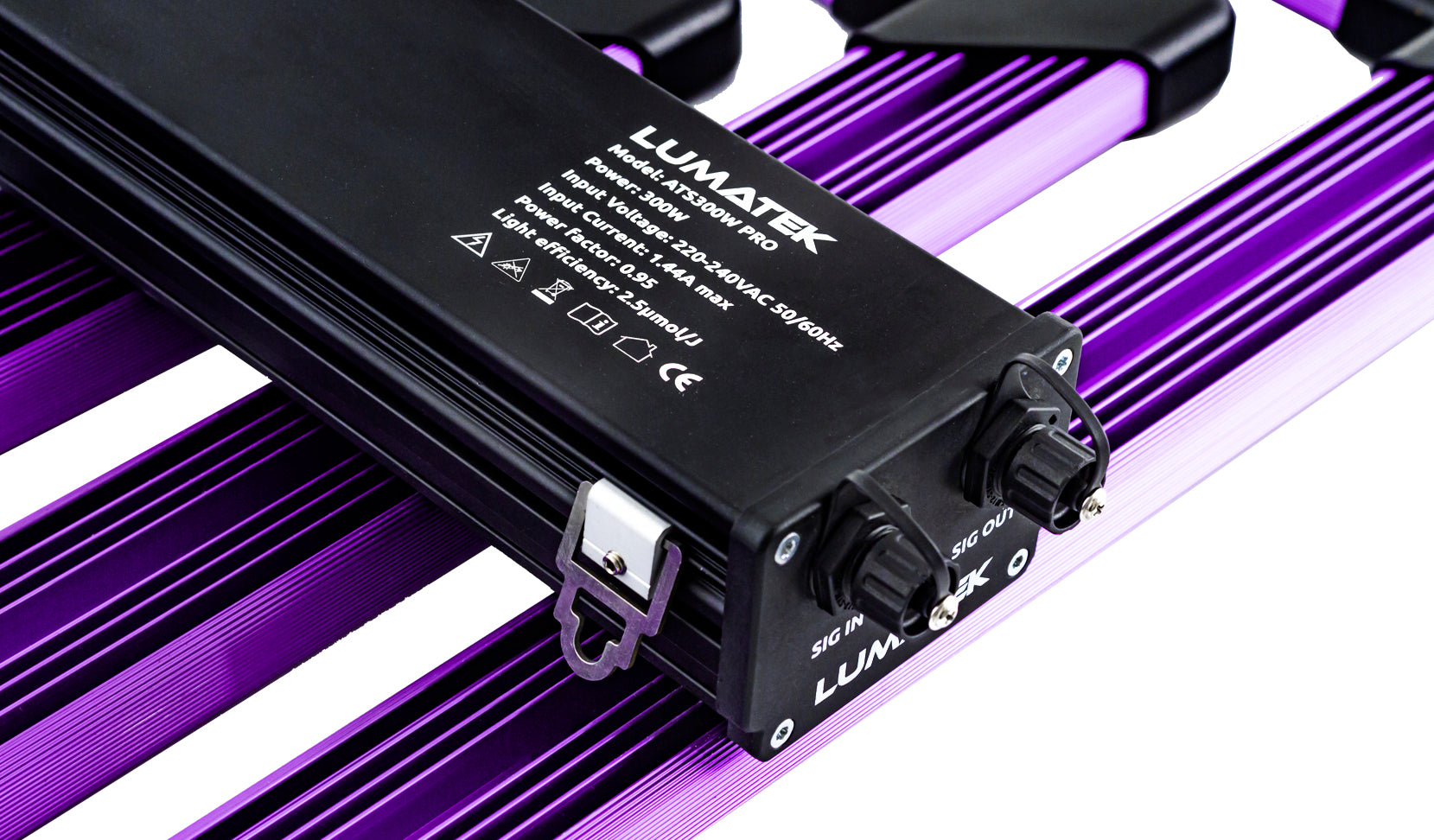

- High quality LUMATEK driver
- Top bin LEDs
- Balanced full spectrum
- Clear Glue protection cover technology on LED bars
- Improved light spread and uniformity

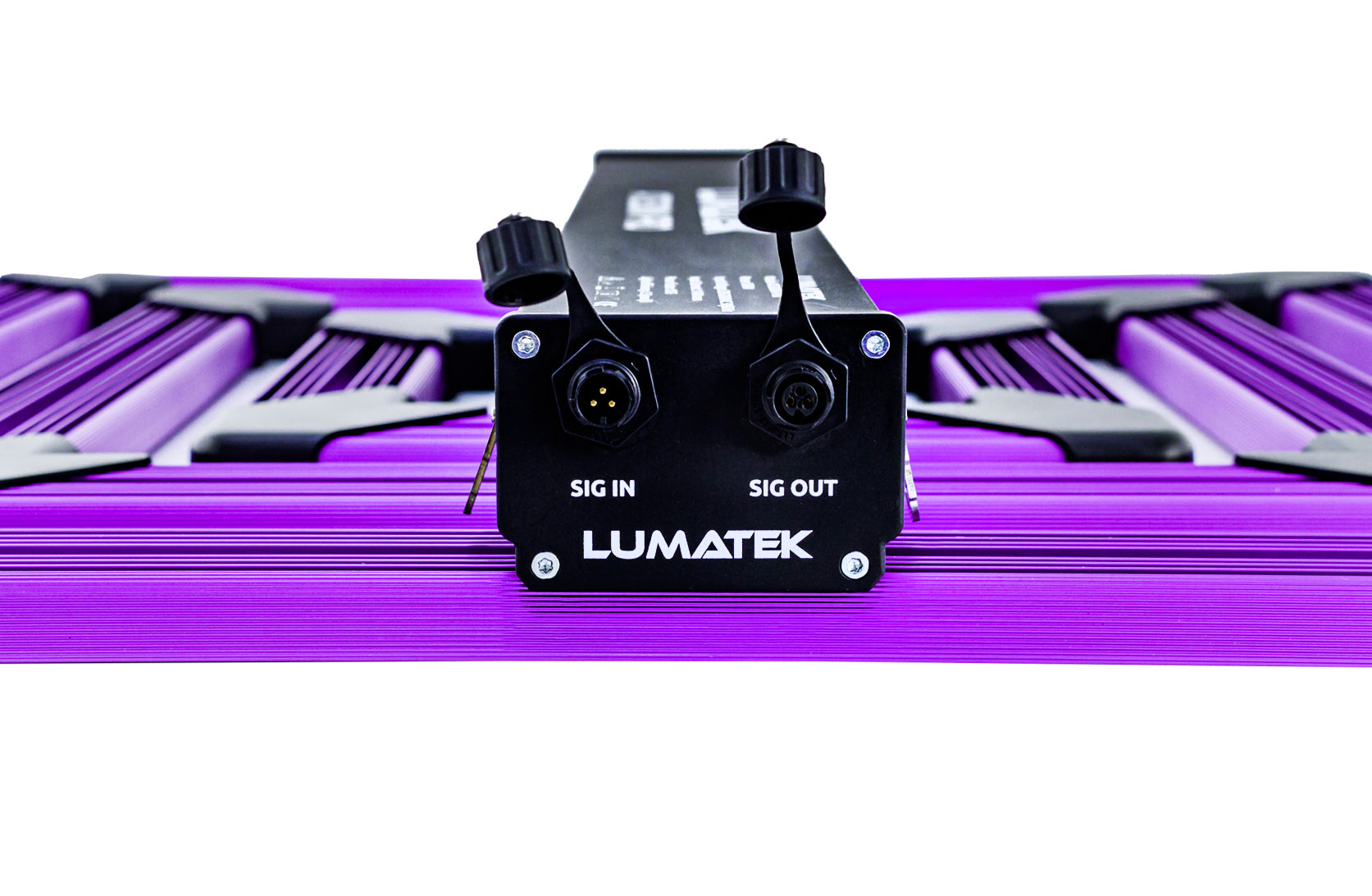

- External control with Lumatek Controllers or Universal Controllers 0-10V
- Compact design ideal for up to 1 x 1 m grow area
- Fully Dimmable
- User friendly Plug & Play Assembling
- 3 Year Warranty

ITEMS INCLUDED:
- 1 x ATS300W Pro LED Fixture with Driver
- 1 x Power Cable 230V
- 1 x 0-10V Light Dimmer + Velcro
- 2 x Metal Cable Hangers
- 1 x Product Manual

CONTROL SYSTEMS

This Lumatek LED fixture is fully compatible with external control systems, including the Lumatek Digital Panel Plus 2.0. Manage light timing, automated dimming in one per cent increments, temperature safety features, and dynamic Sunrise and Sunset Modes. Control up to 100 fixtures from a single controller and fine-tune your lighting environment with professional precision.

Universal Control Systems Compatibility

Whether you´re using Lumatek´s controller or another system with a 0-10V output signal, you´re covered. Even if your setup includes a controller with an RJ port interface, our LED fixtures remain compatible by using a signal converter that adapts the RJ port to 0-10V control. That means flexibility across platforms without needing to overhaul your existing gear. Designed for scalability and ease of integration, Lumatek empowers growers to take full command of their lighting setups, from tents to large-scale operations.
