BALLAST USAGE
Lumatek continues to innovate by introducing to you, the next generation of HID digital ballast technology for the horticultural grow lighting sector: The all-new Lumatek Utopia 630/600 DE CMH/HPS controllable ballast uses the latest in microprocessor-controlled electronics, to power both high-voltage CMH and HPS grow lamps – which are the most efficient HID light source for horticulture farming – allowing for both possibilities without additional expense.
BALLAST TECHNOLOGY

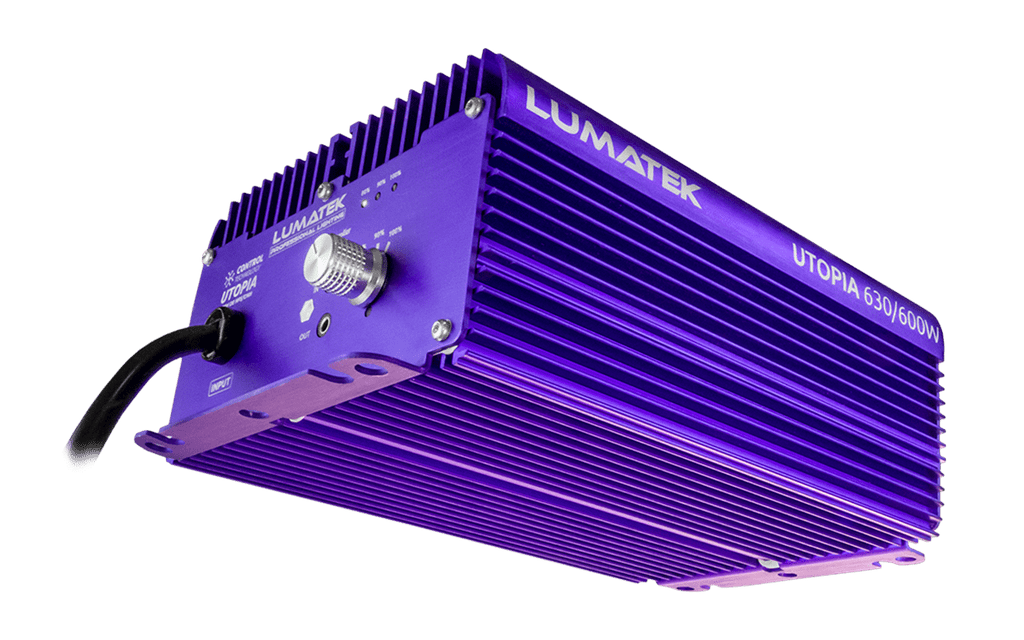

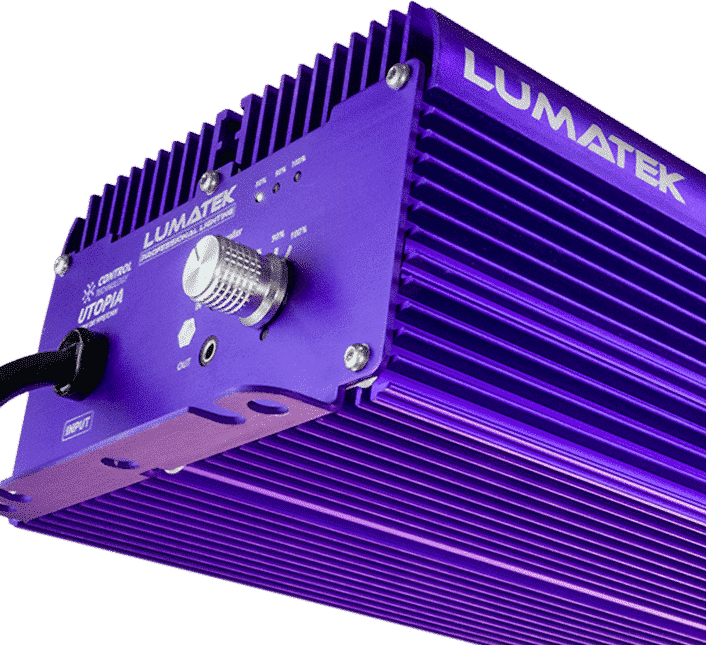

The Utopia 630W/600W ballast can drive both high or low voltage 600W HPS and 630W CMH DE grow lamps. Reducing the need for different ballasts/fixtures for each light source and thus reducing cost and maximising efficiency and flexibility to all growers.
For safety this ballast uses full circuit protection including open/short circuit, over temperature, over/low voltage, end of lamp life/rectification and EMI suppression.
KEY SPECIFICATIONS
Product Code: LUMBC007
Input Voltage: 220-240V 50/60Hz
Power Consumption (at 100%): 660W
Input Current: 2.7 – 3.0A
Efficacy: 95%
Light Distribution: 140º
Lamps: 630W CMH DE 240V & 600W HPS DE 400V
Dimmable: 80%-90%-100%
Power Factor: >0.98
THD: >10%
External Control: With Lumatek Digital Panel
Dimensions: 116x238x95.8mm
Weight: 3.35 Kg
Certificates: CE
KEY FEATURES
- High output and efficacy
- Powers two different technologies: CMH & HPS in 240V & 400V
- Designed for best performance with 600W HPS & 630W CMH Lamps
- Manually dimmable 80%-90%-100%
- Externally-controllable with Lumatek Digital Panel
- Appropriate Lamps and Reflectors sold separately
ITEMS INCLUDED:
1 x Lumatek 220-240V Utopia 630W/600W CMH/HPS Ballast with connecting cables
1 x Manual
CONTROL SYSTEMS
This Lumatek LED fixture is fully compatible with external control systems, including the Lumatek Digital Panel Plus 2.0. Manage light timing, automated dimming in one per cent increments, temperature safety features, and dynamic Sunrise and Sunset Modes. Control up to 100 fixtures from a single controller and fine-tune your lighting environment with professional precision.
Universal Control Systems Compatibility
Whether you´re using Lumatek´s controller or another system with a 0-10V output signal, you´re covered. Even if your setup includes a controller with an RJ port interface, our LED fixtures remain compatible by using a signal converter that adapts the RJ port to 0-10V control. That means flexibility across platforms without needing to overhaul your existing gear. Designed for scalability and ease of integration, Lumatek empowers growers to take full command of their lighting setups, from tents to large-scale operations.
