VF90W LED producing a PPF of 308 µmol/s achieving a very high efficacy of 2.4 µmol/J.
VF Range
Lumatek has innovated again and come up with the ideal LED fixture for Seedlings, Clones and for any low PPFD target plants. Meet the new VF90W, with Vertical Farming Range (VF Range).
These versatile high efficacy fixtures will ensure you reach your goals when used in Vertical Farming applications. From propagation factories and nurseries, climate chambers, warehouse farms, containers, among others, the Lumatek VF range will deliver the adequate light quality spectral and photon flux levels you need.
DIODE TECHNOLOGY

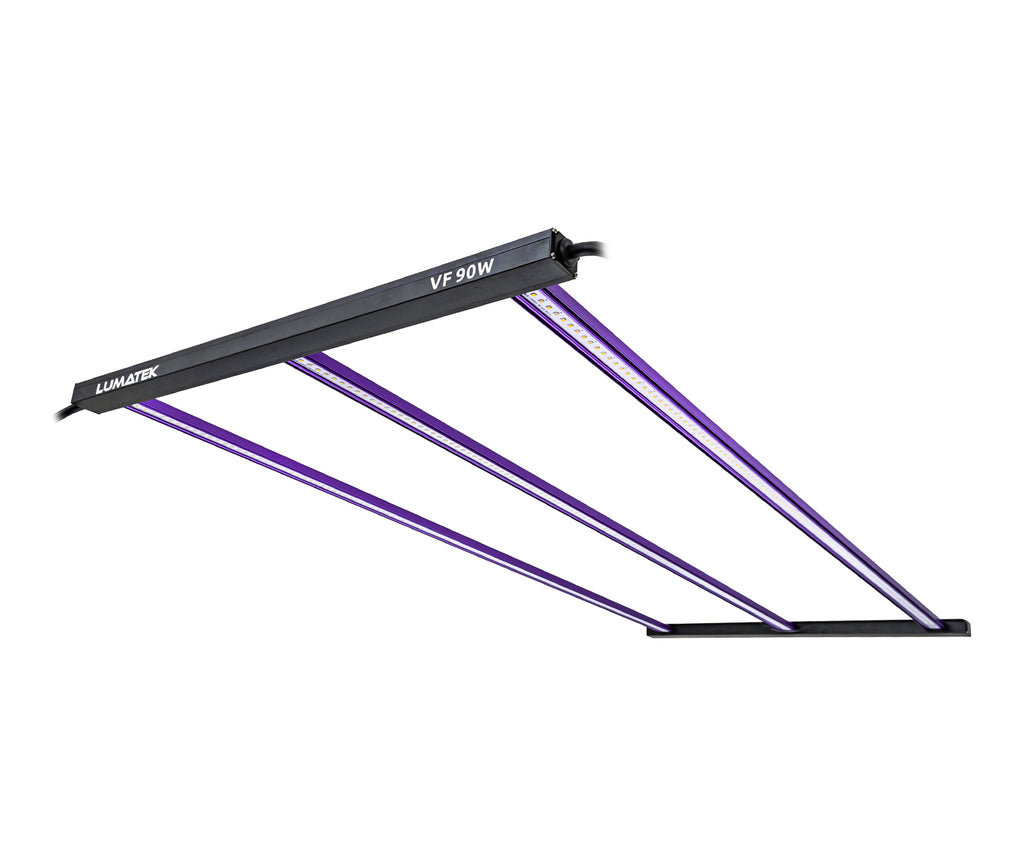

The VF90W comprises of four 30W LED bars with 4000K White and 3000K Warm White diodes, with a total PPF output of 308 μmol/s and a 2.4 μmol/J Efficacy.
The VF range already includes the new clear Glue protection cover technology on the LED bars, resulting in higher light transmittance of 99% without light loss, extended lifetime of diodes, extra corrosion resistance and high waterproof of IP65. For basic maintenance, simply clean the bars with wet cotton.
PRODUCT CONFIGURATION

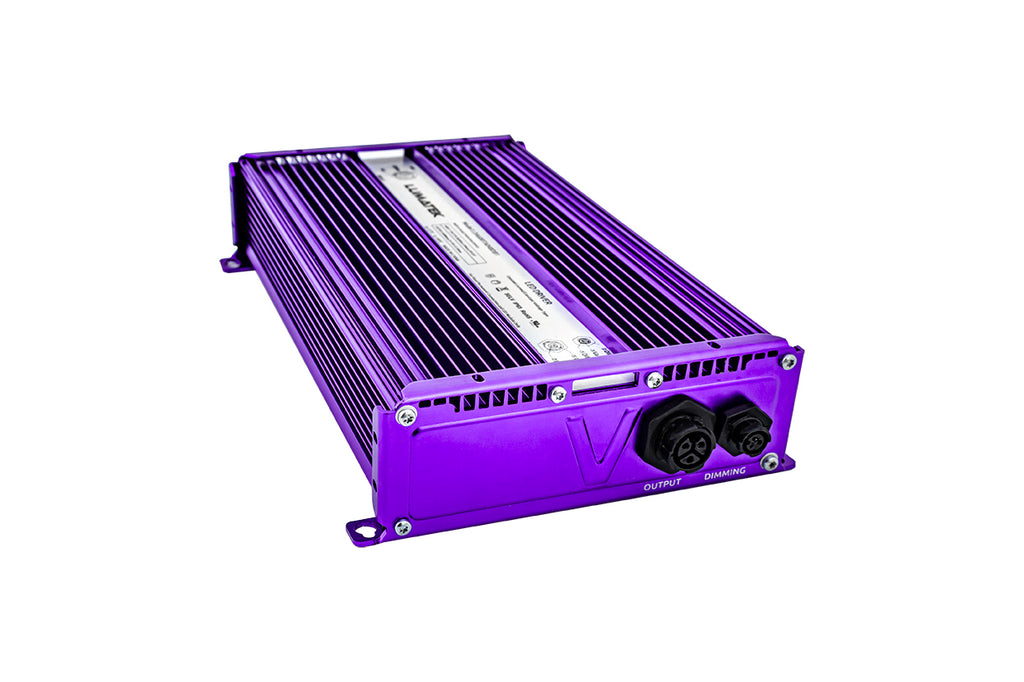

The fixture will require a 650W Driver (sold separately) that can run up to 5 units of VF90W fixtures and can be dimmed with a 0-10V Light Dimmer (also sold separately) or externally controlled with our Digital Panel Plus 2.0 or any other Universal Controller 0-10V. Also, the daisy-chain driver connectivity is possible if you would like to add more units to your system so you can dim all fixture with a single dimmer.
For large facilities, where the 3-Phase electrical supply domains, a 400 Volts, 650W Driver is more suitable.
KEY SPECIFICATIONS
PRODUCT CODE: LUMLED014
EFFICACY: 2.4 μmol/J
PPF: 244 μmol/s
INPUT VOLTAGE: 220-240V, 50-60Hz
INPUT VOLTAGE (Large Facilities Driver): 277-480V, 50-60Hz
INPUT POWER (100%): 103W @ 230V
FOOTPRINT: 1.2 x 0.5 m
WATERPROOF: IP65
L90: 90% output at 60,000h
LIGHT DISTRIBUTION: 120º
WHITE DIODES: LEDESTAR 2.6 µmol/J
RED DIODES: LEDESTAR 2.6 µmol/J
THERMAL MANAGEMENT: Passive Cooling
DIMMABLE: OFF-25-50-75-100% with Dimmer connected to the main 600W driver
EXTERNAL CONTROL: With Lumatek Controller or Universal Controller 0-10V, 1% steps
DRIVER: 650W Driver (Sold Separately), each one can run of to 7 x VF90W Fixtures
WEIGHT: 1.72 Kg
DIMENSIONS: 1207 x 521 x 21 mm
SPECTRUM: Full Spectrum G
WARRANTY: 3 Years
CERTIFICATIONS: CE, EMC, LVD, TISI, RCM, L90
BTU (x1 VF WITH DRIVER REMOTE): 256 BTUs/h (Max)
BTU (x7 VF WITH DRIVER REMOTE): 1999 BTUs/h (Max)
KEY FEATURES
- L90: 90% output at 60,000 h
- Ideal Spectrum and Light Intensity for low PPFD target plants
- Efficacy of 2.4 µmol/J
- PPF of 244 µmol/s
- Includes three 30W LED bars attached to the frame
- Top bin White 4000K and Warm White 3000K LEDs
- External control with Lumatek Controllers or Universal Controllers 0-10V
- Fully Dimmable an In-Series Link Option
- High heat dissipation
- Shorten Plant Growth Cycle
- Powered by a 650W Driver sold separately, that can run up to 7 VF90W Fixtures
- User friendly Plug & Play Assembling
- IP65 Water & Dustproof rated
- 3 Year Warranty
ITEMS INCLUDED:
- 1 x VF90W LED Fixture
- 1 x Product Manual
CONTROL SYSTEMS
This Lumatek LED fixture is fully compatible with external control systems, including the Lumatek Digital Panel Plus 2.0. Manage light timing, automated dimming in one per cent increments, temperature safety features, and dynamic Sunrise and Sunset Modes. Control up to 100 fixtures from a single controller and fine-tune your lighting environment with professional precision.
Universal Control Systems Compatibility
Whether you´re using Lumatek´s controller or another system with a 0-10V output signal, you´re covered. Even if your setup includes a controller with an RJ port interface, our LED fixtures remain compatible by using a signal converter that adapts the RJ port to 0-10V control. That means flexibility across platforms without needing to overhaul your existing gear. Designed for scalability and ease of integration, Lumatek empowers growers to take full command of their lighting setups, from tents to large-scale operations.
