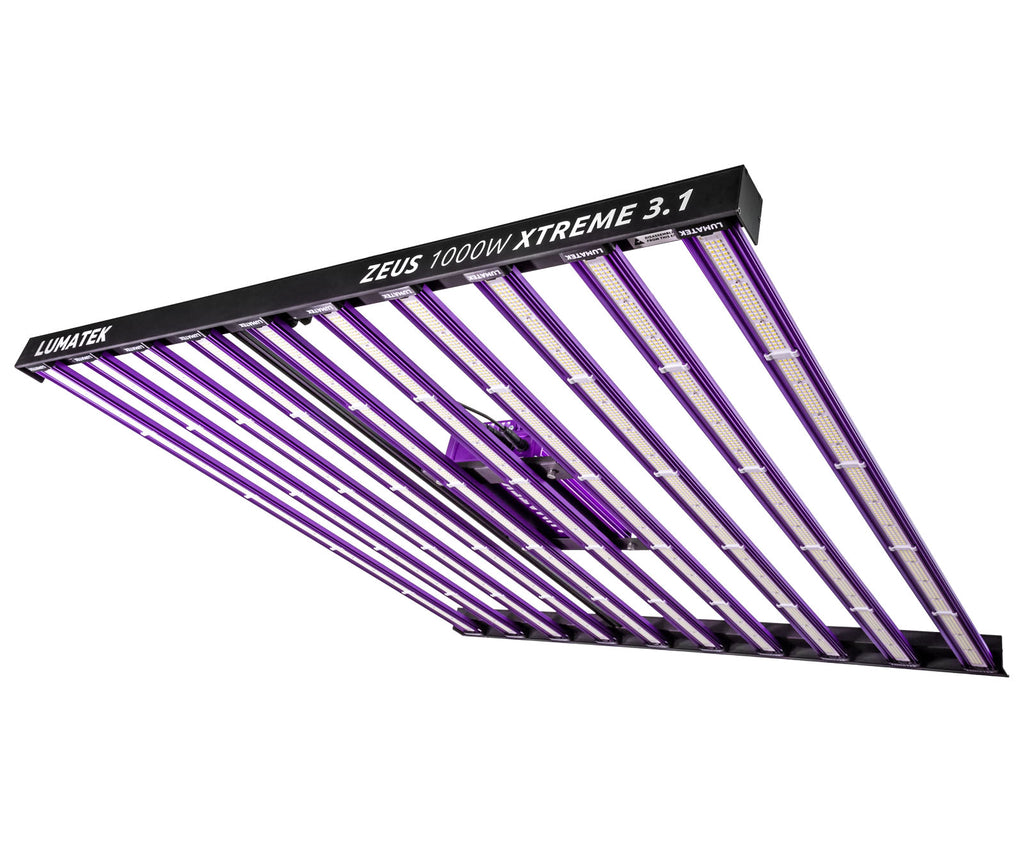

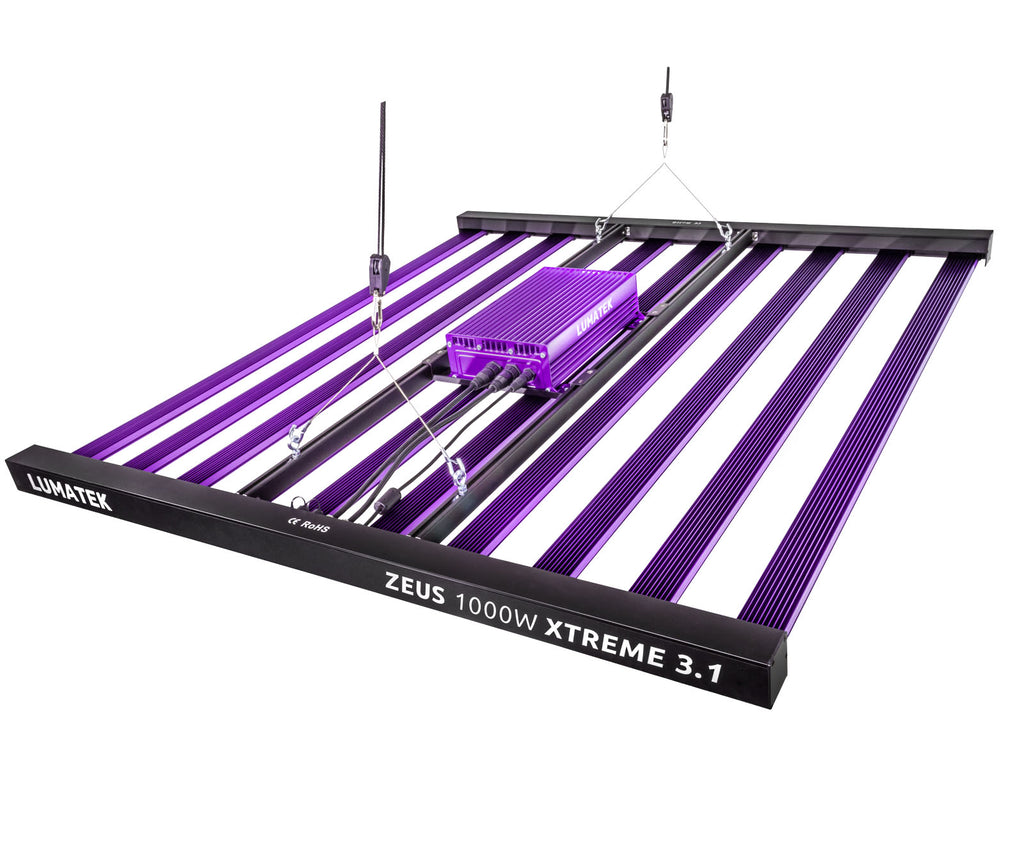

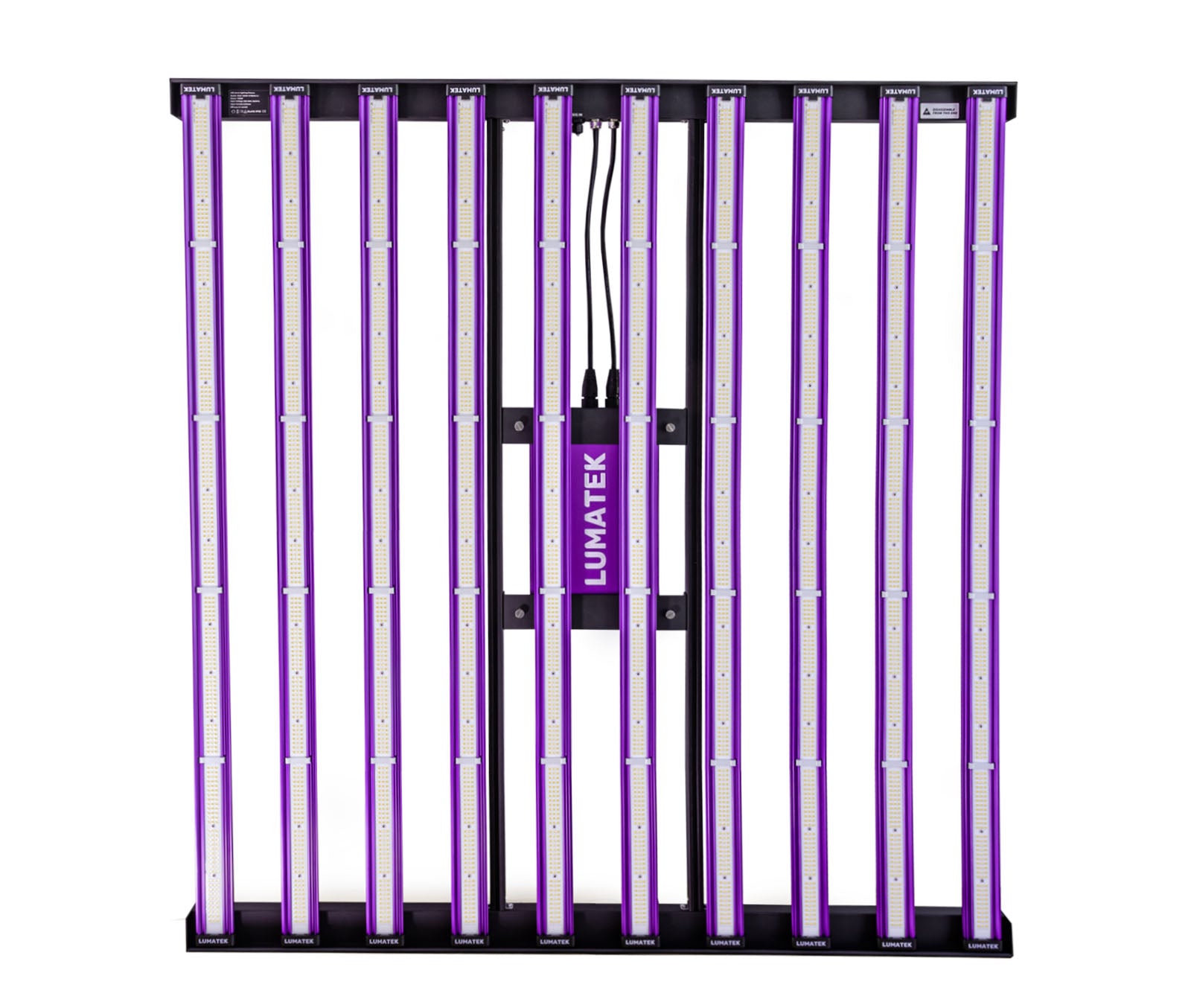

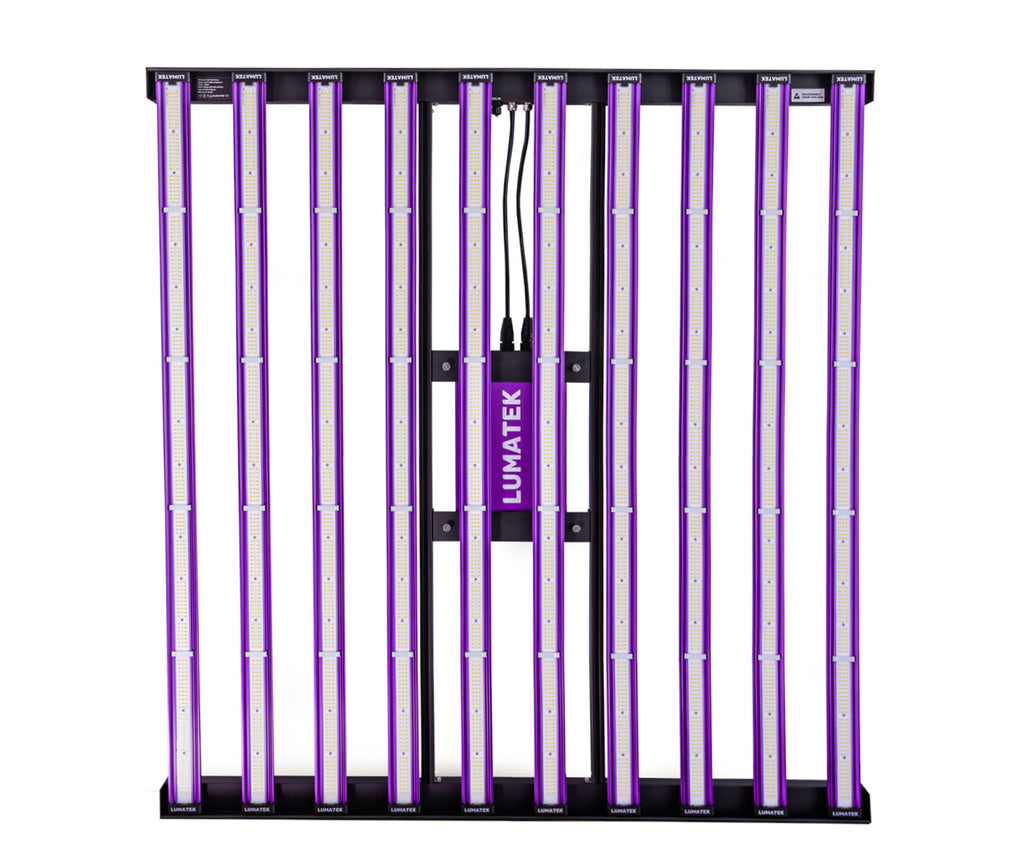

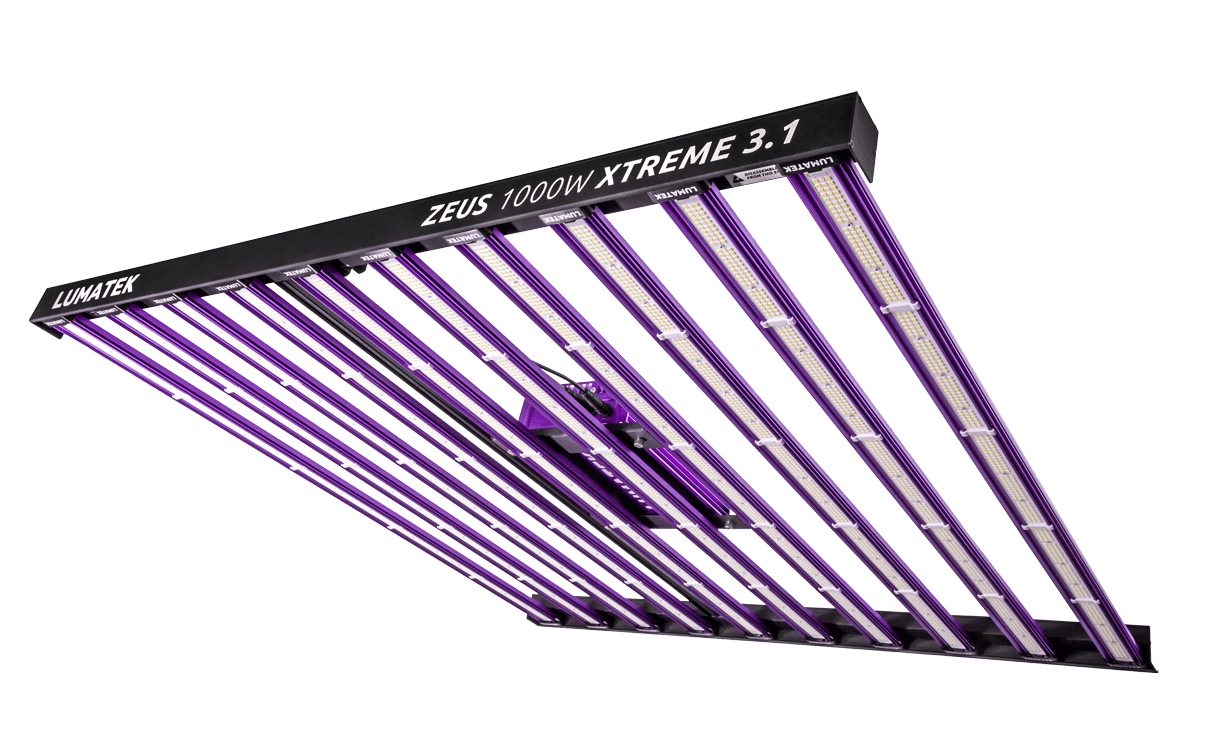

LUMATEK ZEUS 1000W Xtreme PPFD CO2 LED 2.9

EFFICACY & PPF

This generation of ZEUS is part of the legacy of the ZEUS 600W PRO 2.9, named Best Cultivation Product at Spannabis. These upgraded models are powered by high-performance Lumatek drivers and equipped with next-generation top-bin LEDs from Lumileds and Osram. Together, they deliver a carefully calibrated full spectrum tailored for all stages of plant development, from early veg to late flower, making them a go-to choice for full-cycle cultivation.

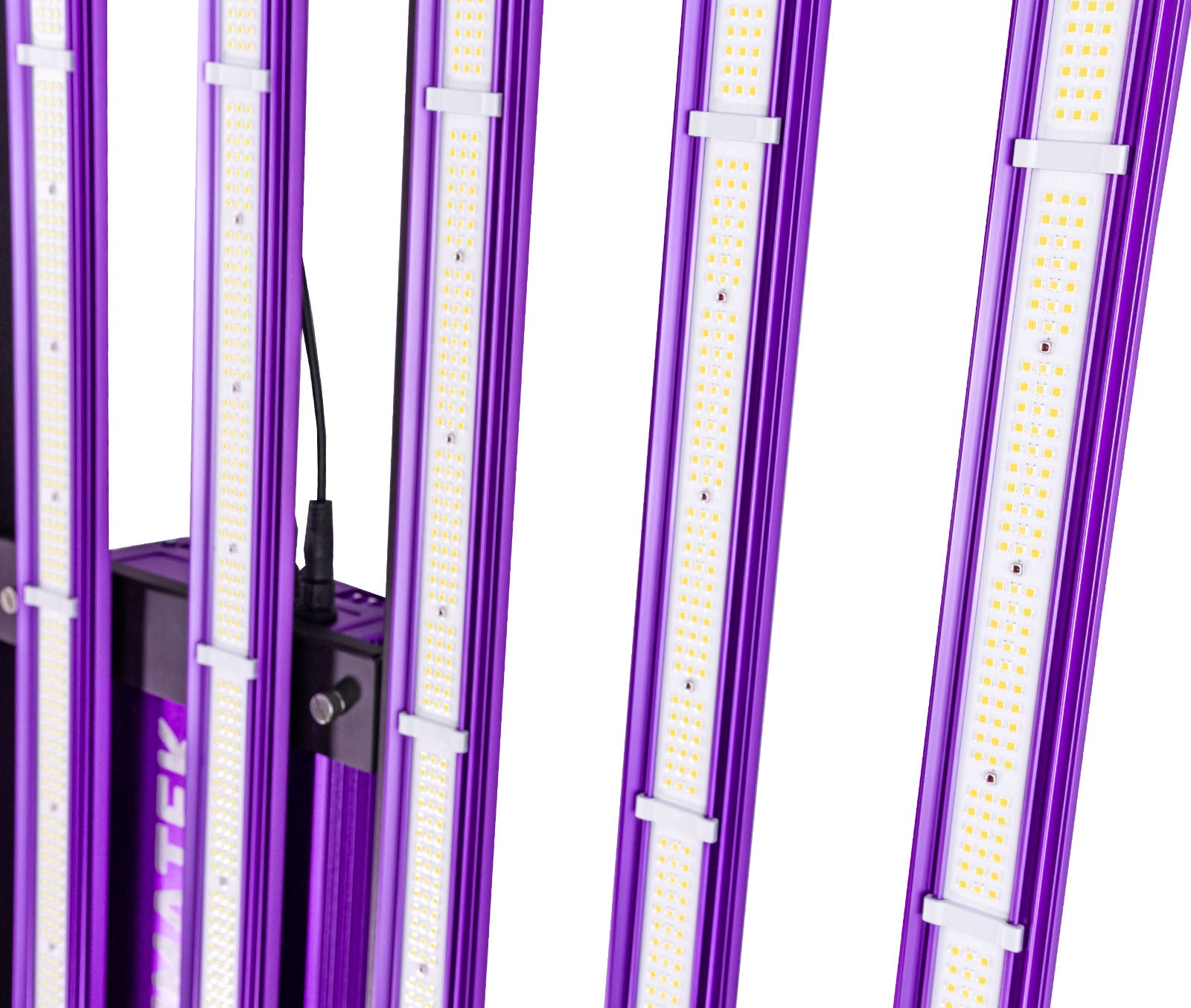

Each LED bar is sealed with Lumatek’s advanced clear glue coating, boosting light transmittance to 99 per cent while shielding the diodes from moisture, dust, and corrosion. With an IP65 waterproof rating and a rugged design made for humid grow environments, these fixtures are both reliable and easy to maintain. A quick wipe with a damp cloth keeps them performing at their best.

DIODE TECHNOLOGY

Designed for serious indoor growers working with enriched CO₂ environments, the ZEUS 1000W XTREME CO₂ delivers a massive total PPF of 2925 µmol/s at an impressive efficacy of 2.9 µmol/J. Its full-spectrum output is powered by high-performance Osram RED diodes, rated at 4.3 µmol/J, and Lumileds WHITE diodes, rated at 2.9 µmol/J, creating a finely tuned spectrum that supports vigorous growth and explosive flowering.

This fixture is built to endure the demands of intensive grow rooms. With IP65 protection and a clear glue protective coating across each LED bar, it achieves 99 per cent light transmittance while shielding internal components from moisture and corrosion. Even after 60,000 hours of use, it retains 90 per cent of its original light output, making it a long-term investment in plant health, yield consistency, and operational efficiency.

CO₂ Supplementation

While CO₂ supplementation is not required to operate the ZEUS 1000W XTREME, it does unlock the fixture´s full potential. For growers running without CO₂, we recommend increasing the distance between the light and the canopy. This adjustment helps maintain optimal PPFD levels relative to the plant’s growth stage, preventing light stress and promoting balanced development.

In non-CO₂ setups, the fixture can effectively cover up to 1.8 by 1.8 meters. When using CO₂ in a controlled environment, yields can improve significantly, provided it is applied correctly. A general rule of thumb is to match your CO₂ parts per million (PPM) with your PPFD. For example, at a peak PPFD of 1500 µmol/m²/s, CO₂ levels should ideally reach 1500 PPM. However, many cultivators find that starting around 1400 PPM offers a safer baseline, especially when in a new setup.

KEY SPECIFICATIONS

PRODUCT CODE: LUMLED003
EFFICACY: 2.9 µmol/J
PPF: 2925 µmol/s
INPUT VOLTAGE: 220-240V, 50-60Hz
INPUT POWER at 100%: 1025W (±5%) @ 230 V AC
FOOTPRINT: 1.5 x 1.5 m with Supp. CO2;
1.8 x 1.8 m without Supp. CO2 (used at higher heights)
WATERPROOF: IP65
L90: 90% output at 60,000 h
LIGHT DISTRIBUTION: 120°
RED DIODES Osram 4.3 µmol/J
WHITE DIODES: Lumileds 2.9 µmol/J
THERMAL MANAGEMENT: Passive Cooling
DIMMABLE: OFF-25%-50%-75%-100% with 0-10V Light Dimmer (Included)
EXTERNAL CONTROL: With Lumatek Controller or Universal Controller 0-10V, 1% steps
WEIGHT: 18 Kg
DIMENSIONS: 1181 x 1091 x 106 mm
SPECTRUM: Full Spectrum F
Warranty: 5 Years
CERTIFICATIONS: CE, EMC, LVD, TISI, RCM, L90
BTU (WITH DRIVER ATTACHED): 3668 BTUs/h (Max)
BTU (WITH DRIVER REMOTE): 3411 BTUs/h (Max)

KEY FEATURES

- L90: 90% output at 60,000 h
- High efficacy of 2.9 µmol/s/J
- High PPF output of 2925 µmol/s
- High quality Lumatek LED driver
- Designed to deliver ultra-high PPFD for CO2 enriched Grow Spaces
- CO2 Supplemental: Once a PPFD of 1000 µmol/s/m2 is exceeded, a ratio of 1:1 CO2 PPM should be added
- Top bin LEDs
- Clear Glue protection cover technology on LED bars
- Balanced full spectrum
- External control with Lumatek Controllers or Universal Controllers 0-10V
- Replaceable 100W Pro 2.9 magnet light bars
- Fully Dimmable
- User friendly Plug & Play Assembling
- Detachable driver for remote use
- 5 Year Warranty


ITEMS INCLUDED:
- 10 x Lumatek 100W Pro 2.9 Full-Spectrum Magnet Light Bars
- 1 x Lumatek 1000W Xtreme Pro Driver with Connecting Cables
- 1 x LED Structure with Connecting Cables
- 1 x 0-10V Light Dimmer + Velcro
- 2 x Metal Cable Hangers
- 1 x Product Manual

CONTROL SYSTEMS

This Lumatek LED fixture is fully compatible with external control systems, including the Lumatek Digital Panel Plus 2.0. Manage light timing, automated dimming in one per cent increments, temperature safety features, and dynamic Sunrise and Sunset Modes. Control up to 100 fixtures from a single controller and fine-tune your lighting environment with professional precision.

Universal Control Systems Compatibility

Whether you´re using Lumatek´s controller or another system with a 0-10V output signal, you´re covered. Even if your setup includes a controller with an RJ port interface, our LED fixtures remain compatible by using a signal converter that adapts the RJ port to 0-10V control. That means flexibility across platforms without needing to overhaul your existing gear. Designed for scalability and ease of integration, Lumatek empowers growers to take full command of their lighting setups, from tents to large-scale operations.
