Producing a PPF of 1353 µmol/s, achieving a high efficacy of 2.9 µmol/J with Osram LEDs of 4.3 µmol/J. 90% light output at 60,000 h, verified!
EFFICACY & PPF

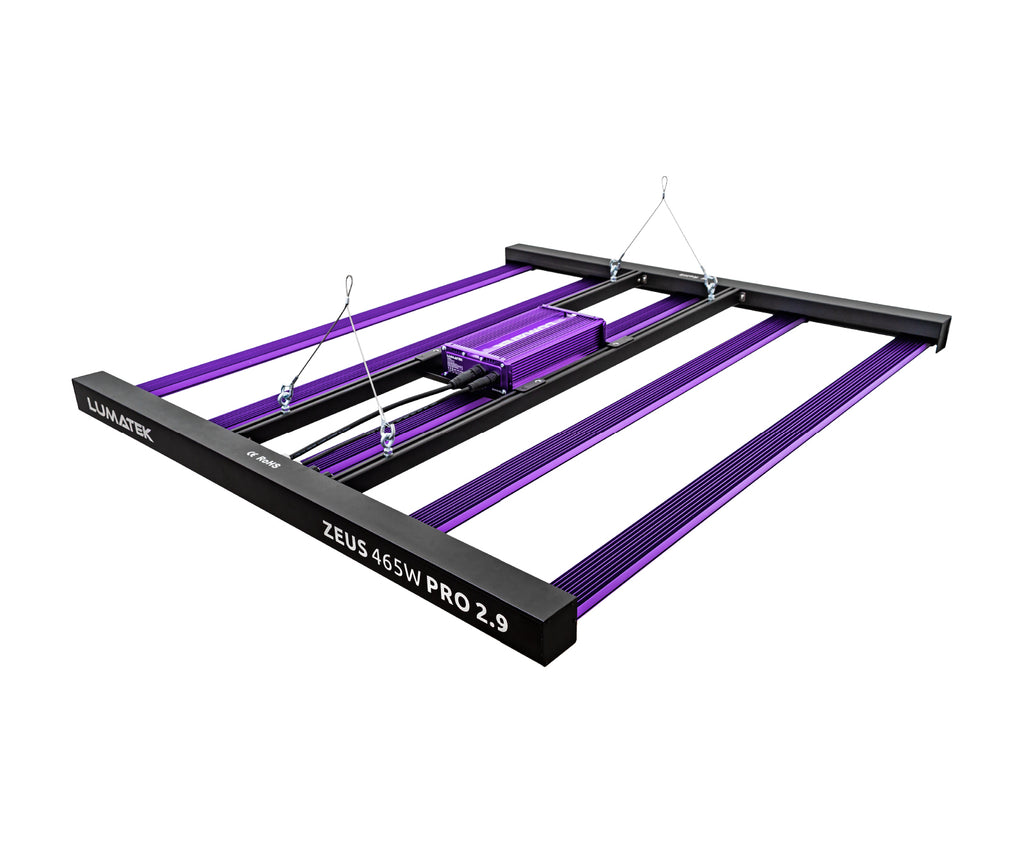

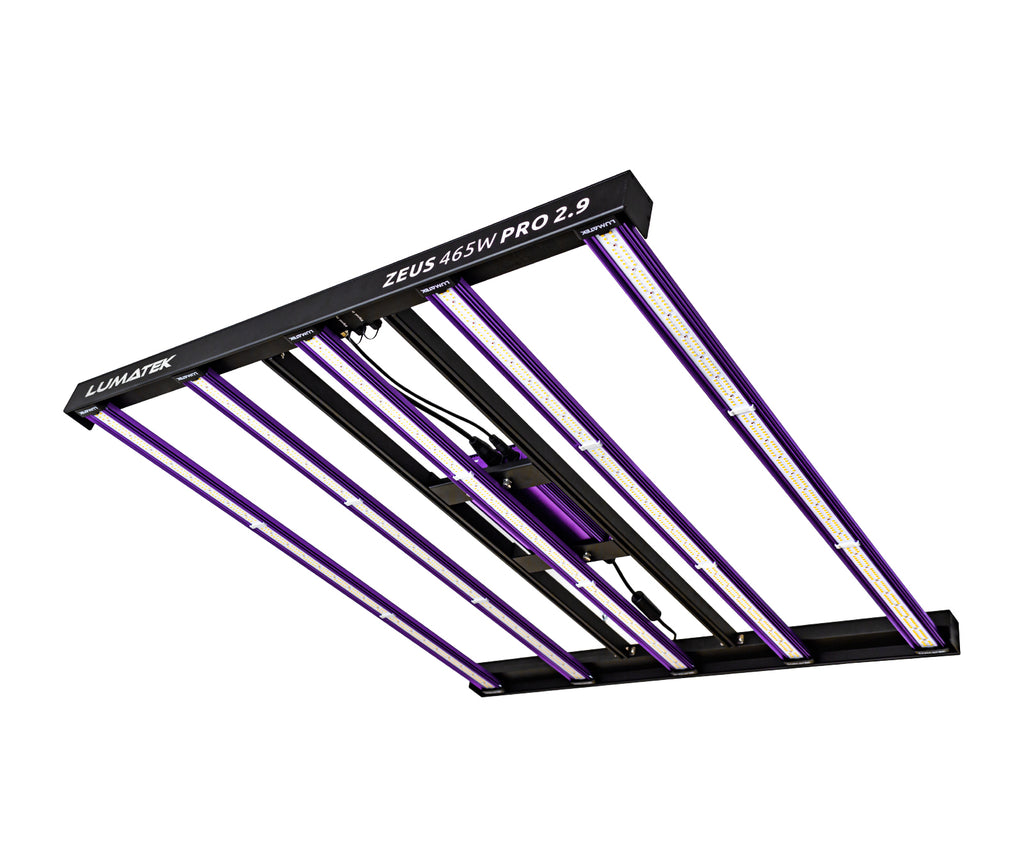

The ZEUS 465W PRO 2.9 delivers powerful efficiency in a compact, high-output fixture designed for 1.2 by 1.2 meter grow spaces. Designed for growers seeking bright, consistent light with maximum energy efficiency, this model delivers a total PPF of 1353 µmol/s and a system efficacy of 2.9 µmol/J. Whether you are running a professional micro grow or dialling in a dedicated tent, this fixture delivers the intensity and uniformity you need to thrive.
DIODE TECHNOLOGY
Part of the legacy of the ZEUS 600W PRO 2.9, named Best Cultivation Product at Spannabis. Powered by top bin diodes, the ZEUS 465W PRO 2.9 combines Osram RED LEDs with an exceptional 4.3 µmol/J efficacy and Lumileds WHITE diodes rated at 2.9 µmol/J. Together, they generate a full-spectrum light source ideal for both vegetative and flowering phases. Each LED bar is sealed with Lumatek’s clear glue protective layer, enhancing light transmittance to 99 per cent with minimal output loss. The coating also extends diode life, resists corrosion, and meets IP65 waterproof standards. Even after 60,000 hours of use, the fixture maintains 90 per cent of its original output.
PRODUCT CONFIGURATION

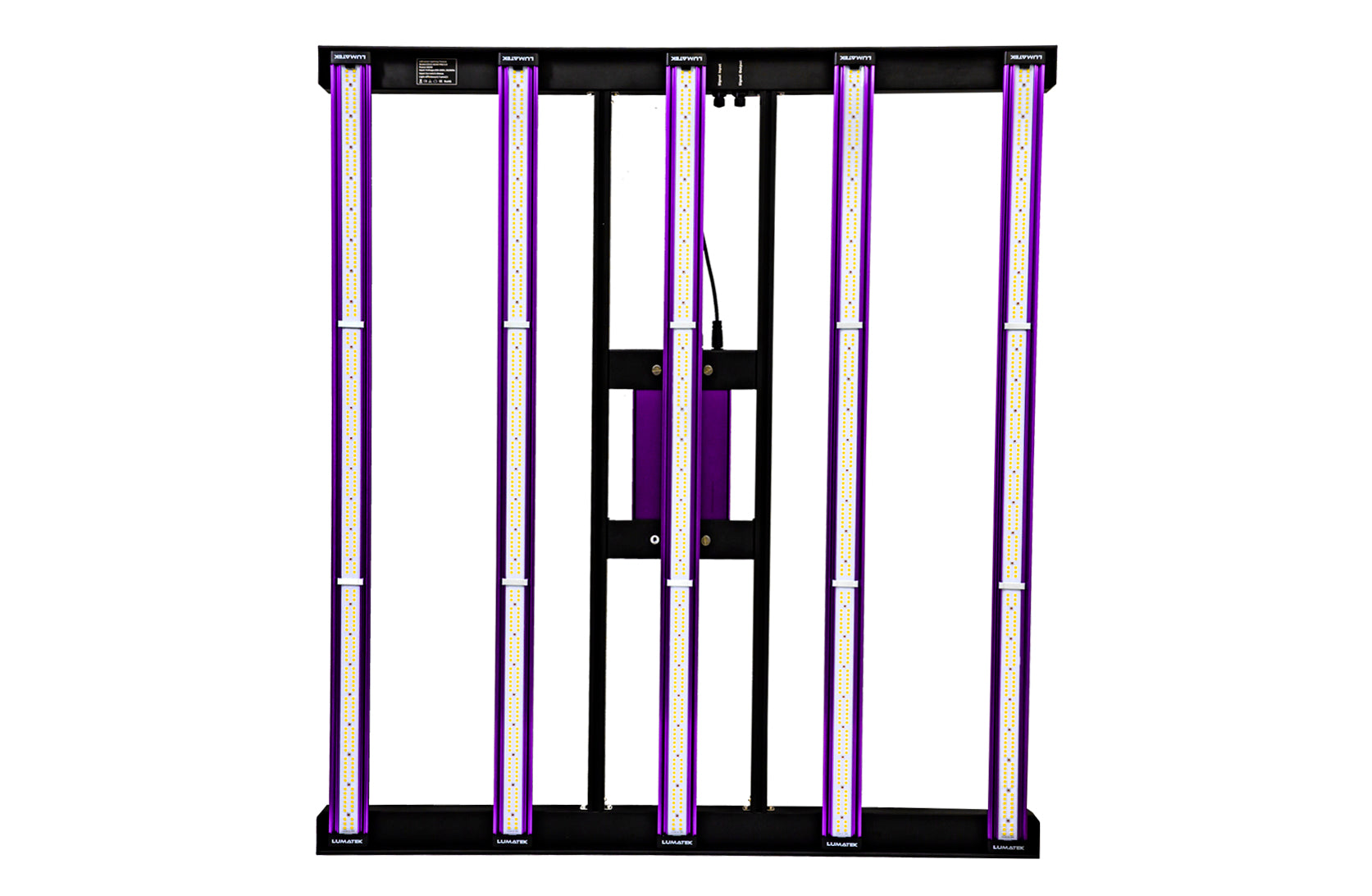

The linear bar configuration, equipped with five magnet-mounted bars for effortless setup, maintenance, and tool-free replacement, ensures high PPFD uniformity at close range, making it ideal for grow tents, single benches, and multi-layer vertical setups. Lumatek’s full-spectrum lighting combines intensity, duration, and spectrum quality to drive optimised results from seed to harvest, with smooth dimming across all growth stages.
KEY SPECIFICATIONS
PRODUCT CODE: LUMLED011
EFFICIENCY: 2.9 µmol/J
PPF: 1353 µmol/s
INPUT VOLTAGE: 220–240 V, 50–60 Hz
INPUT POWER at 100%: 475 W (±5%) @ 230 V AC
COVERAGE: 1.2 × 1.2 m
WATER RESISTANCE: IP65
L90: 90% light output at 60,000 hours
LIGHT DISTRIBUTION: 120°
RED DIODES: Osram 4.3 µmol/J
WHITE DIODES: Lumileds 2.9 µmol/J
THERMAL MANAGEMENT: Passive cooling
DIMMABLE: OFF–25%–50%–75%–100% with 0–10V Dimmer (Included)
EXTERNAL CONTROL: Compatible with Lumatek Controller or universal 0–10V controller, 1% increments
WEIGHT: 10 kg
DIMENSIONS: 998 × 900 × 52 mm
SPECTRUM: Full Spectrum F
WARRANTY: 5 years
CERTIFICATIONS: CE, EMC, LVD, TISI, RCM, L90
BTU (WITH ATTACHED DRIVER): 1689 BTUs/h (max)
BTU (WITH REMOTE DRIVER): 1571 BTUs/h (max)
KEY FEATURES
- L90: 90% output at 60,000 h
- High efficacy up to 2.9 µmol/s/J
- PPF output of 1353 µmol/s
- High quality LUMATEK driver
- Top bin LEDs
- Balanced full spectrum
- Clear Glue protection cover technology on LED bars
- Featuring the latest Samsung and Osram diodes
- External control with Lumatek Controllers or Universal Controllers 0-10V
- Replaceable 93W 2.9 magnet light bars
- Fully Dimmable
- User friendly Plug & Play Assembling
- Detachable driver for remote use
- 5 Year Warranty
ITEMS INCLUDED:
- 5 x Lumatek 93W Pro 2.9 Full-Spectrum Magnet Light Bars
- 1 x Lumatek 465W Pro 2.9 Driver with Connecting Cables
- 1 x LED Structure with Connecting Cables
- 1 x 0-10V Light Dimmer + Velcro
- 2 x Metal Cable Hangers
- 1 x Product Manual
CONTROL SYSTEMS
This Lumatek LED fixture is fully compatible with external control systems, including the Lumatek Digital Panel Plus 2.0. Manage light timing, automated dimming in one per cent increments, temperature safety features, and dynamic Sunrise and Sunset Modes. Control up to 100 fixtures from a single controller and fine-tune your lighting environment with professional precision.
Universal Control Systems Compatibility
Whether you´re using Lumatek´s controller or another system with a 0-10V output signal, you´re covered. Even if your setup includes a controller with an RJ port interface, our LED fixtures remain compatible by using a signal converter that adapts the RJ port to 0-10V control. That means flexibility across platforms without needing to overhaul your existing gear. Designed for scalability and ease of integration, Lumatek empowers growers to take full command of their lighting setups, from tents to large-scale operations.
