EFFICACY & PPF
Lumatek brings you even closer to the perfect LED fixture, the Zeus 600W 2.6. Get ready to grow, The brightest just got brighter.
The higher specification Lumatek Zeus 600W 2.6 LED is a linear multi-light bar fixture producing very high levels of PPF of 1570 µmol/s and a Efficacy of up to 2.6 µmol/J and industry leading €/ µmol ratio.
DIODE TECHNOLOGY
The new line of Zeus is built using high quality Lumatek drivers and latest generation higher efficiency top bin LEDs from Lumileds and Osram, generating a full-spectrum light source ideal for veg and flowering cycles. Another new feature of this line is the Clear Glue protection cover technology on the LED bars; resulting in higher light transmittance of 99% without light loss, extended lifetime of diodes, extra corrosion resistance and high waterproof of IP65. For basic maintenance, simply clean the bars with wet cotton.
PRODUCT CONFIGURATION
With the advances in technology and fixture performance, high quality LED horticultural lighting is now a credible option offering significant return on investment to cultivators. Lumatek full spectrum horticultural LED solutions balance light quality (spectra) with light quantity (intensity and duration) ensuring an even light distribution and uniform spread.

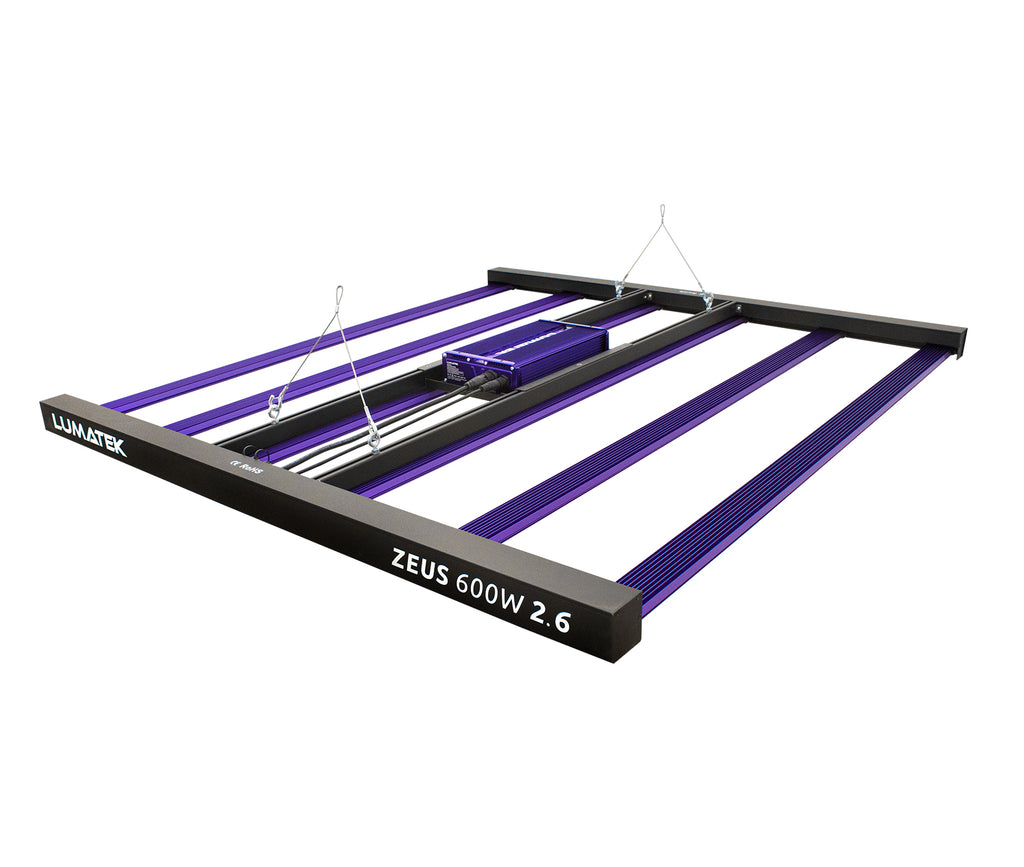

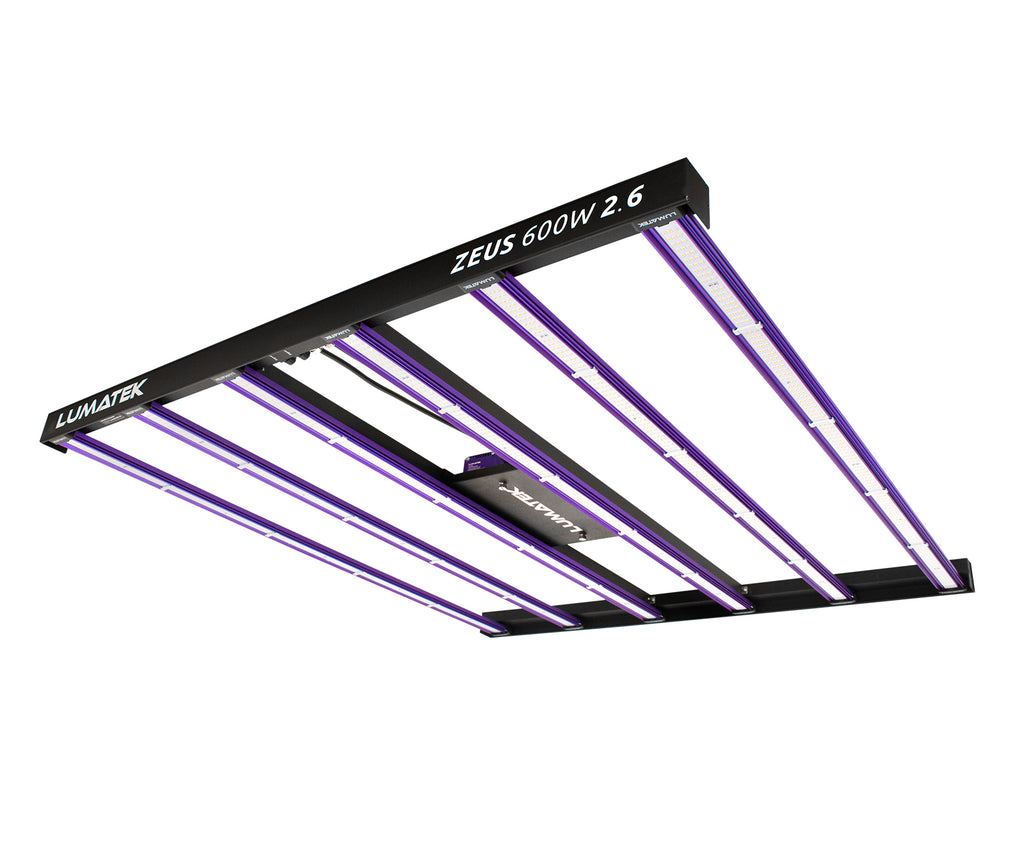

The array of the Zeus 600W 2.6 creates a uniform spread of light at short distance to the crop enabling single source grow lighting for multi-layer cultivation systems, single benches in low rooms and grow tents. This fixture will cover perfectly 1.4×1.4m for Flowering and 1.5×1.5m for Veg.
KEY SPECIFICATIONS
PRODUCT CODE: LUMLED020
EFFICACY: 2.6 µmol/J
PPF: 1570 µmol/s
INPUT VOLTAGE: 220-240V, 50-60Hz
INPUT POWER at 100%: 615W (±5%) @ 230 V AC
FOOTPRINT: 1.4 x 1.4 m
WATERPROOF: IP65
L90: 90% output at 60,000 h
LIGHT DISTRIBUTION: 120°
RED DIODES: Osram 4.3 µmol/J
WHITE DIODES: Lumileds 2.5 µmol/J
THERMAL MANAGEMENT: Passive Cooling
DIMMABLE: OFF-25%-50%-75%-100% with 0-10V Light Dimmer (Included)
EXTERNAL CONTROL: With Lumatek Controller or Universal Controller 0-10V, 1% steps
WEIGHT: 13.5 Kg
DIMENSIONS: 1091 x 1182 x 81 mm
SPECTRUM: Full Spectrum F
WARRANTY: 5 Years
CERTIFICATIONS: CE, EMC, LVD, TISI, RCM, L90
BTU (WITH DRIVER ATTACHED): 2115 BTUs/h
BTU (WITH DRIVER REMOTE): 1996 BTUs/h
KEY FEATURES
- L90: 90% output at 60,000 h
- Efficacy of 2.6 µmol/J
- PPF output of 1570 µmol/s
- High quality LUMATEK driver
- Top bin LEDs
- Balanced full spectrum
- Clear Glue protection cover technology on LED bars
- External control with Lumatek Controllers or Universal Controllers 0-10V
- Replaceable 100W 2.6 magnet light bars
- Fully Dimmable
- User friendly Plug & Play Assembling
- Detachable driver for remote use
- 5 Year Warranty
ITEMS INCLUDED:
- 6 x Lumatek 100W 2.6 Full-Spectrum Magnet Light Bars
- 1 x Lumatek 600W Driver with Connecting Cables
- 1 x LED Structure with Connecting Cables
- 1 x 0-10V Light Dimmer + Velcro
- 2 x Metal Cable Hangers
- 1 x Product Manual
CONTROL SYSTEMS
This Lumatek LED fixture is fully compatible with external control systems, including the Lumatek Digital Panel Plus 2.0. Manage light timing, automated dimming in one per cent increments, temperature safety features, and dynamic Sunrise and Sunset Modes. Control up to 100 fixtures from a single controller and fine-tune your lighting environment with professional precision.
Universal Control Systems Compatibility
Whether you´re using Lumatek´s controller or another system with a 0-10V output signal, you´re covered. Even if your setup includes a controller with an RJ port interface, our LED fixtures remain compatible by using a signal converter that adapts the RJ port to 0-10V control. That means flexibility across platforms without needing to overhaul your existing gear. Designed for scalability and ease of integration, Lumatek empowers growers to take full command of their lighting setups, from tents to large-scale operations.
