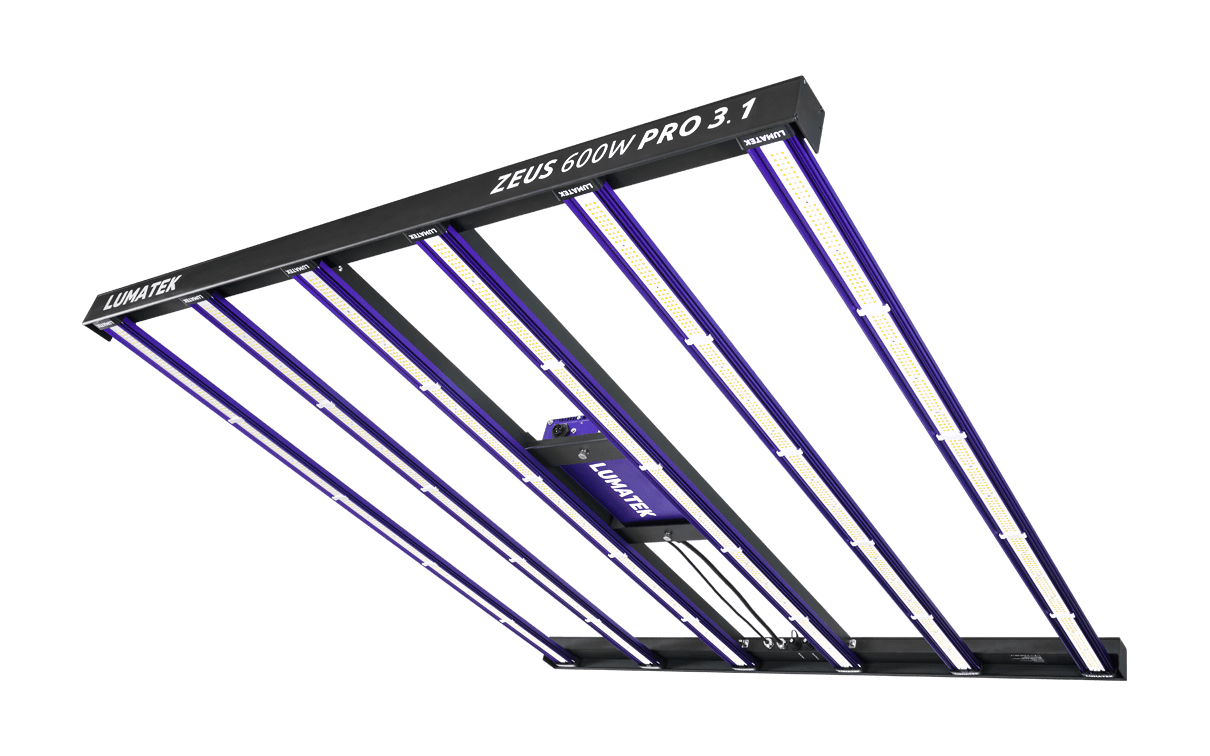

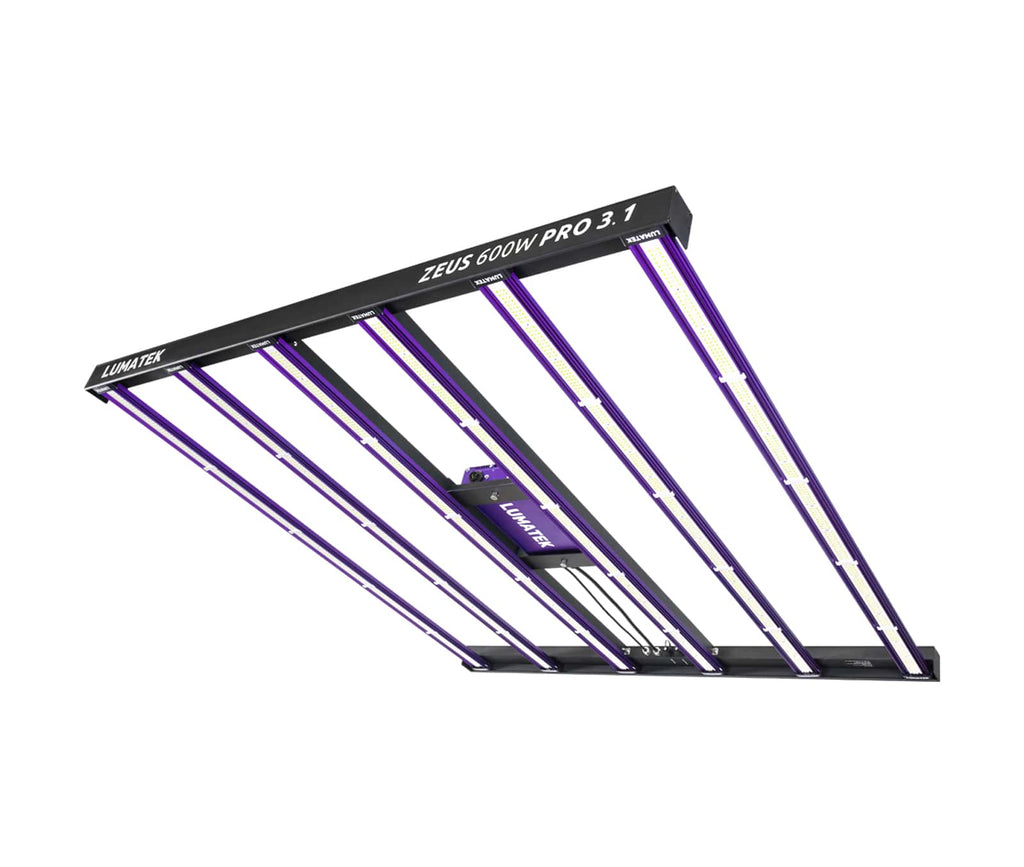

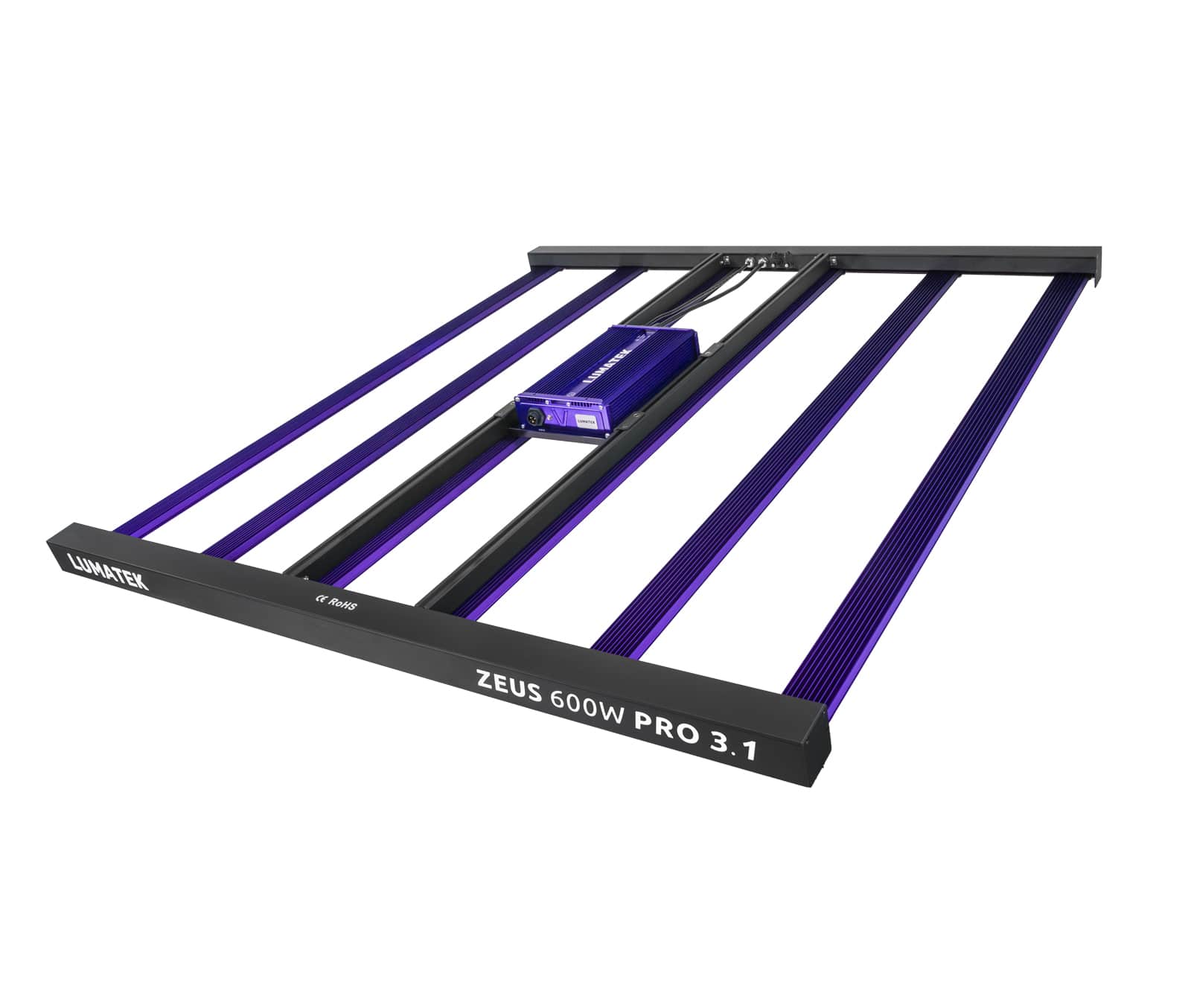

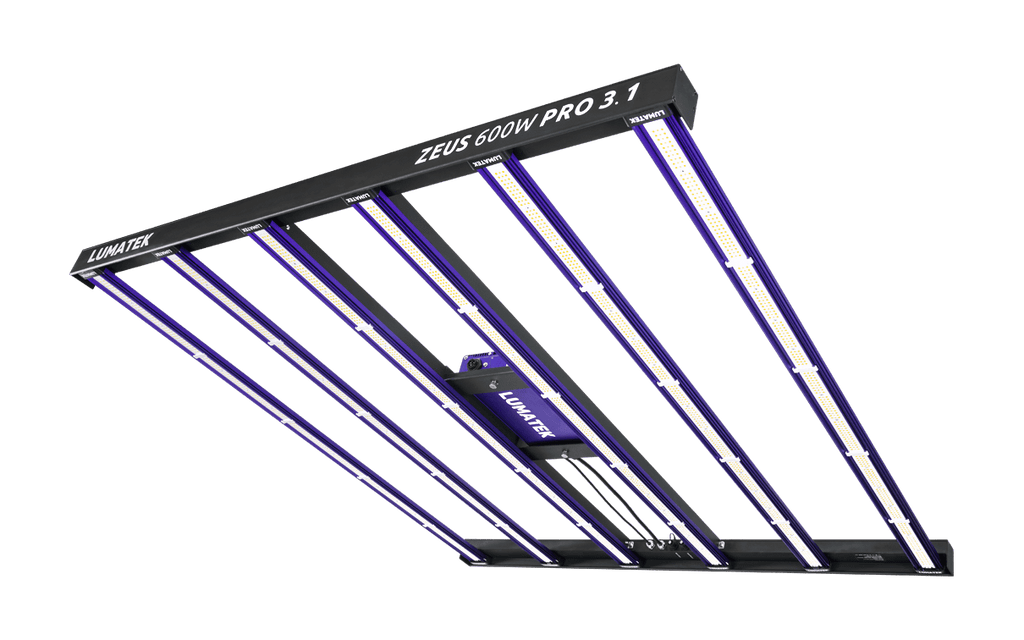

LUMATEK ZEUS 600W PRO LED 3.1

EFFICACY & PPF

With a boosted efficacy of 3.1 µmol/J, the ZEUS 600W PRO 3.1 is designed to illuminate 1.5 x 1.5 meter grow space with intense light and high uniformity. This powerhouse delivers top-tier light output while keeping energy use in check, making it a smart upgrade for both home cultivators and professional setups looking to maximise yields and crop quality in every square meter.

With LED tech evolving fast and fixture performance reaching new heights, full-spectrum horticultural lighting has become more than just viable; it is a high and fast return of investment. Lumatek’s LED systems are tuned for both light quality and quantity, blending spectrum precision with output and duration to deliver balanced, uniform light that helps plants thrive through every phase.
Built for consistency and trusted by growers worldwide, the ZEUS 600W PRO 3.1 is all about pushing quality, yield, and efficiency without compromise.

DIODE TECHNOLOGY

Step into the next level of cultivation with the ZEUS 600W PRO 3.1, the upgraded evolution of the ZEUS 600W PRO 2.9, named Best Cultivation Product at Spannabis. This high-output fixture is engineered with premium LUMATEK drivers and the latest generation top-bin LEDs, combining RED Osram chips that deliver 3.4 µmol/J with WHITE Samsung LEDs that push 3 µmol/J. The result is a powerful and efficient full-spectrum light source designed for complete plant development, from vegetative to flowering stages.

Built for durability and precision, the ZEUS 600W PRO 3.1 features a clear glue protective coating on its LED bars, allowing up to 99 per cent light transmittance without sacrificing output. This coating also enhances diode lifespan, resists corrosion, and delivers IP65-rated ingress protection—keeping your fixture safe and efficient in humid or high-intensity grow environments.
Optimised for serious growers and scalable setups, this model sets a new benchmark in professional LED horticultural lighting

PRODUCT CONFIGURATION

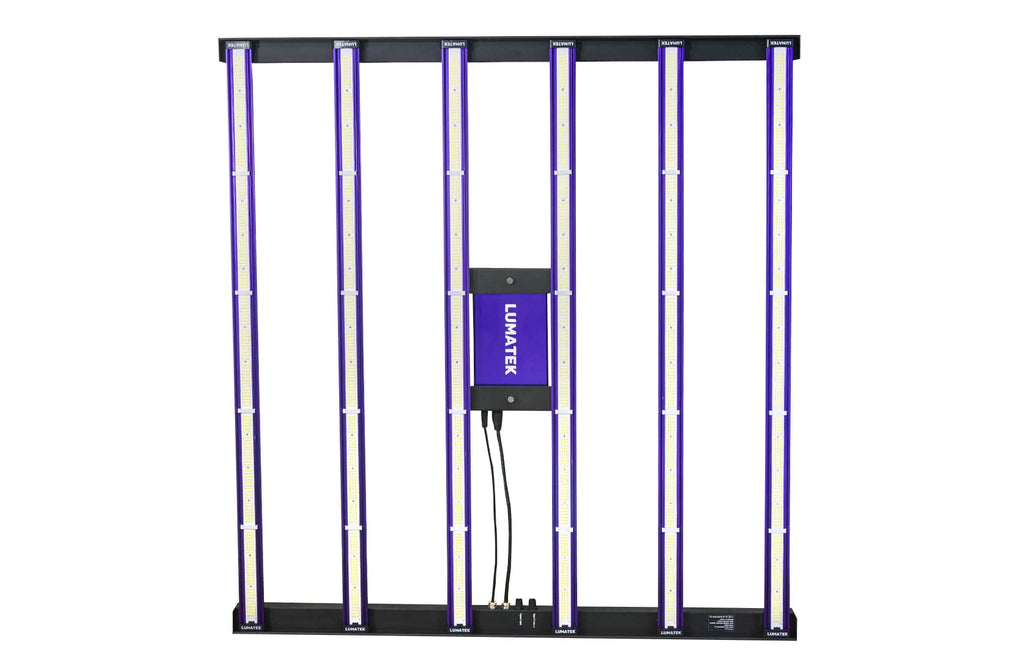

The ZEUS 600W PRO 3.1 features Lumatek’s innovative magnetic modular bar system, making installation, adjustments, and maintenance quick and seamless. Outfitted with six low-powered but highly efficacious LED bars, the fixture reduces overall heat output, improves light distribution across the canopy, and extends the lifespan of critical components.

Need to fine-tune your spectrum? Supplemental UV and Far-Red LED bars can be added to expand the spectral curve, giving you precise control over light quality at every growth stage. Whether you are promoting vegetative vigour or enhancing flowering response, these add-ons help you craft the perfect spectrum for peak plant performance.

KEY SPECIFICATIONS

PRODUCT CODE: LUMLED029
EFFICACY: 3.1 µmol/J
PPF: 1990 µmol/s
INPUT VOLTAGE: 220-240V, 50-60Hz
INPUT POWER at 100%: 640 W (±5%) @ 230 V AC
FOOTPRINT: 1.5 x 1.5 m
WATERPROOF: IP65
L90: 90% output at 60,000 h
LIGHT DISTRIBUTION: 120°
RED DIODES: Osram 4.3 µmol/J
WHITE DIODES: Samsung 3 µmol/J
THERMAL MANAGEMENT: Passive Cooling
DIMMABLE: OFF-25%-50%-75%-100% with 0-10V Light Dimmer (Included)
EXTERNAL CONTROL: With Lumatek Controller or Universal Controller 0-10V, 1% steps
WEIGHT: 13.5 Kg
DIMENSIONS: 1182 x 1091 x 52 mm
SPECTRUM: Full Spectrum F
WARRANTY: 5 Years
CERTIFICATIONS: CE, EMC, LVD, TISI, RCM, L90
BTU (WITH DRIVER ATTACHED): 2201 BTUs/h (Max)
BTU (WITH DRIVER REMOTE): 2047 BTUs/h (Max)

KEY FEATURES

- L90: 90% output at 60,000 h
- High efficacy of 3.1 µmol/J
- High PPF output of 1990 µmol/s
- High quality LUMATEK driver
- Clear Glue protection cover technology on LED bars
- Featuring the latest Samsung and Osram diodes
- Balanced full spectrum
- External control with Lumatek Controllers or Universal Controllers 0-10V
- Replaceable 100W Pro 3.1 magnet light bars
- Fully Dimmable
- User friendly Plug & Play Assembling
- Detachable driver for remote use
- 5 Year Warrant

Items Included:
6 x LUMATEK 100W PRO 3.1 Full-Spectrum Magnet Light Bars

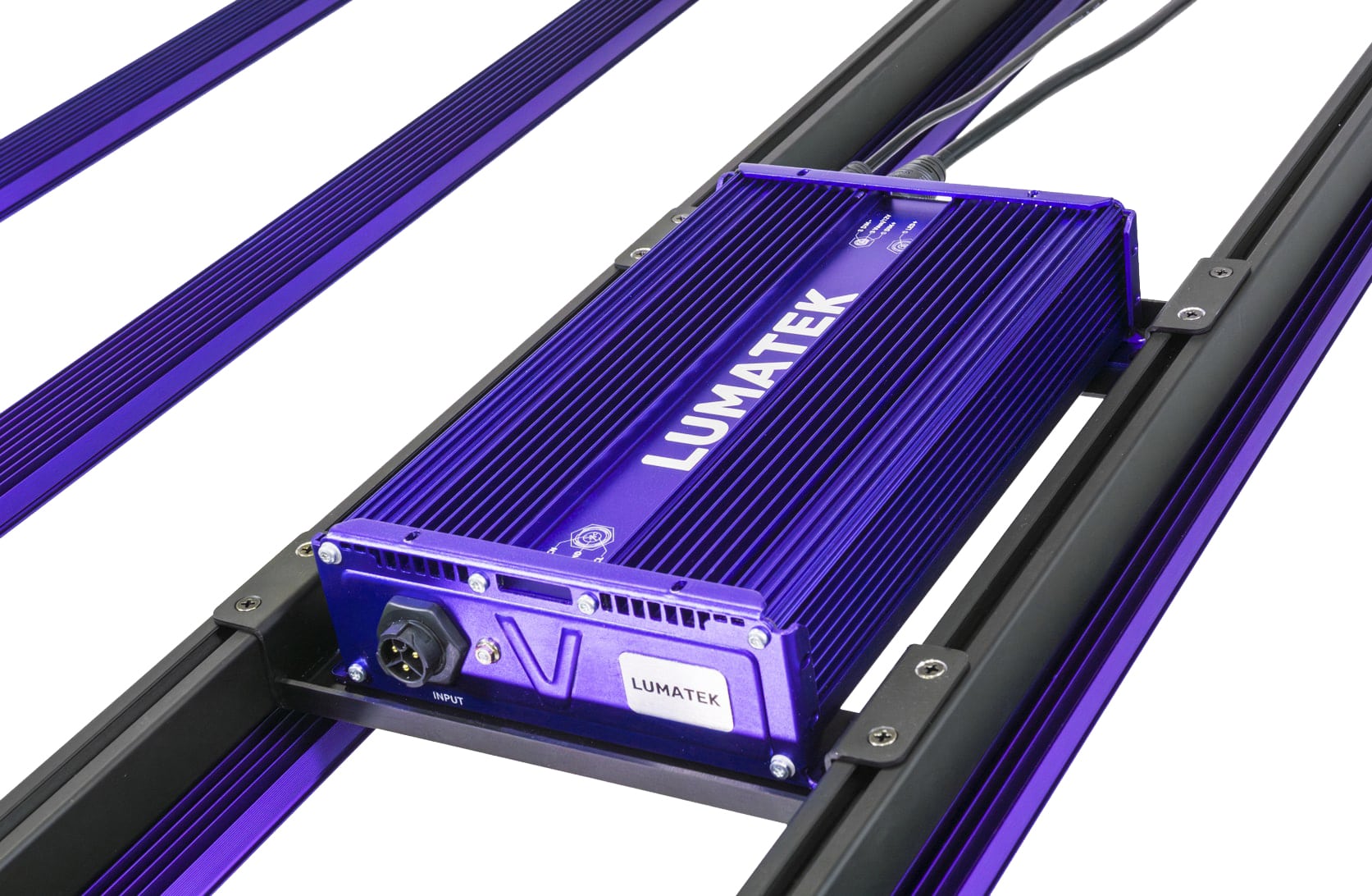

1 x LUMATEK 600W PRO 3.1 Driver with connecting cables
1 x LED Structure with connecting cables
1 x 0-10 V Light Dimmer
2 x Metal cable hangers
1 x Product Manual

CONTROL SYSTEMS

This Lumatek LED fixture is fully compatible with external control systems, including the Lumatek Digital Panel Plus 2.0. Manage light timing, automated dimming in one per cent increments, temperature safety features, and dynamic Sunrise and Sunset Modes. Control up to 100 fixtures from a single controller and fine-tune your lighting environment with professional precision.

Universal Control Systems Compatibility

Whether you´re using Lumatek´s controller or another system with a 0-10V output signal, you´re covered. Even if your setup includes a controller with an RJ port interface, our LED fixtures remain compatible by using a signal converter that adapts the RJ port to 0-10V control. That means flexibility across platforms without needing to overhaul your existing gear. Designed for scalability and ease of integration, Lumatek empowers growers to take full command of their lighting setups, from tents to large-scale operations.
